Manufacturer nVent HOFFMAN
Mfg Catalog # HF0516414
Codale Part # 4138351

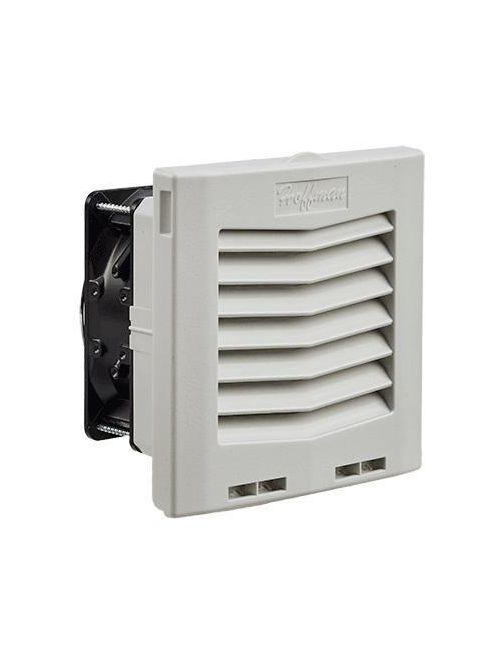

HF05 35 CFM (59 m3/hr.) Side-Mount Filter Fan - HF0516414


UPC 78351034195
DISK UNSPSC 40101604
Catalog Description HF Side-Mount Filter Fans, Lt. Gray, ABS
Codale Part No. 4138351
Industry Standards "UL/cUL Listed; File No. E482010
Application CE
Color EAC
Voltage Rating Type 12 standard on all models
Length IP54 standard option on all models except HF13
Number of Poles Light Gray
Product Short Description HF05 35 CFM (59 m3/hr.) Side-Mount Filter Fan - HF0516414
Item Long Description HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.
MDM Pkg GTiN 00783510341954
Width 6.16 in
Size 6.15 in W x 6.16 in H Grille
Color Gray
Voltage 115 Volt
Type Square
Material Plastic Enclosure
Applications For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
Depth 3.98 in
Height 6.15 in
Weight 0.8 kg
Wattage 10 Watt
Temperature Rating -10 to 55 C
Family Brand Name Hoffman
Max Current 0.16/0.14 A
Airflow Rate 35
Max Temperature 131 degrees F
Min Temperature 14 degrees F
Blade Dimensions 157 mm W x 101 mm D
Finish Matte
Housing Material Non-metallic
