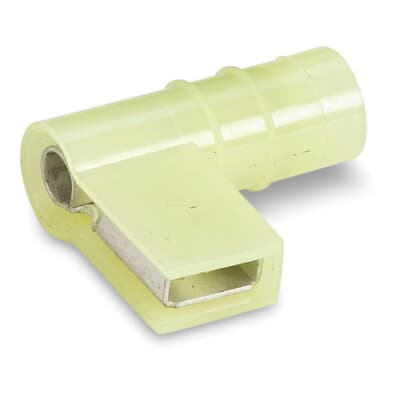

Thomas & Betts RC10-250A 12-10 AWG Yellow 250/RC Series Nylon Insulated Female Disconnect

Manufacturer: ABB Thomas & Betts | Catalog # RC10-250A | Codale Part # 10274
$225.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
400 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

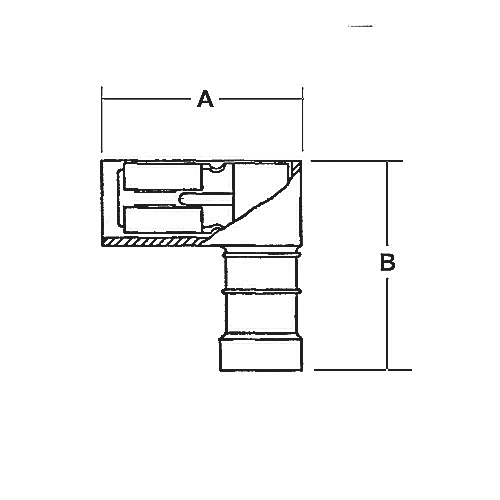

Nylon Insulated Open Top 90 Degree Flag Female Disconnect Terminal, Length .80 Inch, Width .88 Inch, Maximum Insulation .245, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Brass, Tin Plated

Technical Information

Barrel Type
Brazed Seam, Serrated
Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210894478
Color
Yellow
Finish
Electro-Tin Plated
Product UPC
78621089447
Weight
0.0100 lb

Dimensions

Length
0.8 Inch
Features
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
Certifications
  • CSA
  • UL
