Hubbell HBL15W33 20 Amp 125 Volt 2-Pole 3-Wire NEMA 5-20R Yellow Straight Blade Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL15W33 | Codale Part # 104236
$148.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Female Connector Body, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2- Pole 3-Wire Grounding, 125V, 20A5-20R, Yellow, Single Pack.

Technical Information

Amperage
20 Amp
Applications
Industrial/Commercial
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Current
20 Amp
Horsepower
1 hp
Material
Composite
NEMA
5-20R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2 No. 42 File 280C,CSA,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
Tc Connection
Screw Terminals
Temperature Rating
75 degrees C Maximum Continuous, -40 degrees C Minimum Without Impact
Type
Elasto-Grip, Watertight, Insulated, Standard, 2-Pole
Voltage
125 Volt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585013343
Color
Yellow
Environmental Conditions
Watertight
Product Series
Elastogrip
Product UPC
78358501334
Weight
0.3 lb

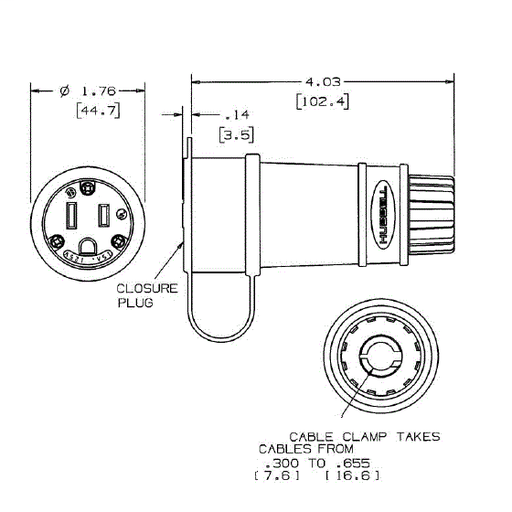

Dimensions

Height
3 Inch
Length
3 Inch
Width
1.61 in

Certifications and Compliance

Country of Origin
USA
Features
  • Thermoplastic elastomer housing
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
  • Watertight
