Hubbell HBL21 10/20 Amp 250/125 Volt DPST Screw Terminal Heavy Duty Panel Mount Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL21 | Codale Part # 104336
$21.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Double Pole Single Throw 10A 250V/10A 125V, Screw Terminals,

Technical Information

Actuator
Toggle
Amperage
20 Amp
Applications
2-Circuit On/Off
Contact Configuration
Two Position
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
1.5 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Metal
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Screw Terminal
Tc Connection
Screw Terminal
Type
Bat Handle
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585017099
Color
Chrome
Product Series
Double Pole/Single Throw
Product UPC
78358501709
Weight
0.1 lb

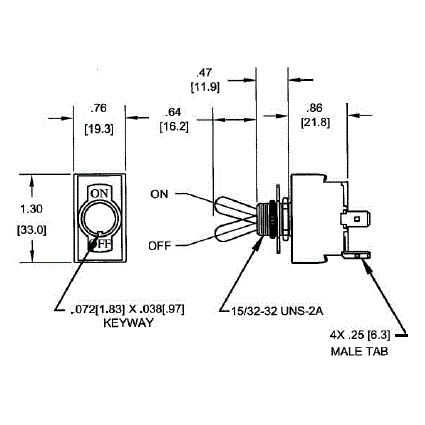

Dimensions

Height
1.3 Inch
Length
1.97 Inch
Width
0.76 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
