Hubbell HBL5929 15 Amp 277 Volt 2-Pole 3-Wire NEMA 7-15P Black Straight Blade Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5929 | Codale Part # 104667
$99.19/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 277V AC, 7-15P, Black, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial and Commercial
Conductor Size
16-10 AWG
Cord Type
Portable
Current
15 Amp
Horsepower
2 hp
Material
Plastic
Mounting Type
Cord
NEMA
7-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA
Style
Finger Grip
Tc Connection
Terminal Screws
Type
Rigidable, Finger Grip, Standard Sized
Voltage
277 Volt
Wattage
4155 Watt
Wire Count
3
Wire Size
18-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585013251
Color
Black
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Industrial Grade
Product UPC
78358501325
Weight
0.15 lb

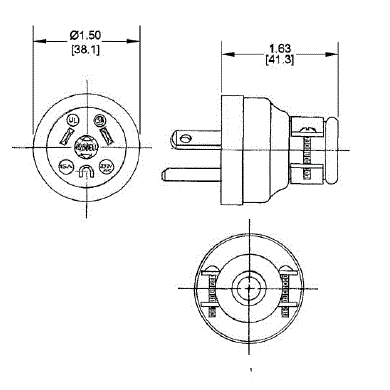

Dimensions

Height
1-1/2 Inch
Length
1.63 Inch
Width
1.5 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulprene body
  • External cord clamp
  • Dead front construction
