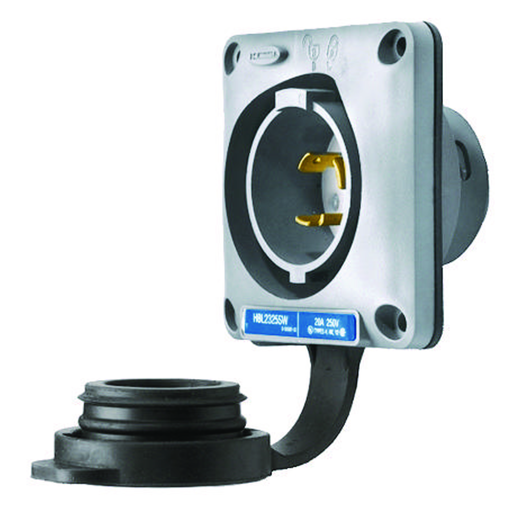

Hubbell HBL2325SW Locking WT S/SHRD Flanged-INLT, 20A 250V, L6-20P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2325SW | Codale Part # 104674
$229.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

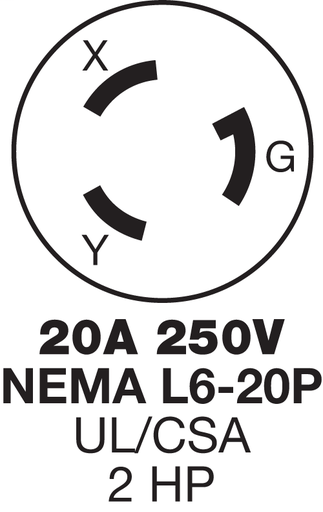

Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Gray.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-10 AWG
Connection Type
Screw Terminal
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
2 hp
Material
Thermoplastic
NEMA
L6-20P
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Ports
2
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Shouded Watertight Single
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Safety-Shroud®

General Product Info

12-Digit UPC
783585231143
Color
Gray and White
Environmental Conditions
Watertight
Product UPC
78358523114
Weight
0.60 lb

Dimensions

Height
2.28 Inch
Length
3-3/4 Inch
Width
3.75 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL Type 4X Environmental seal protects connection while in use.
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Standard Product
