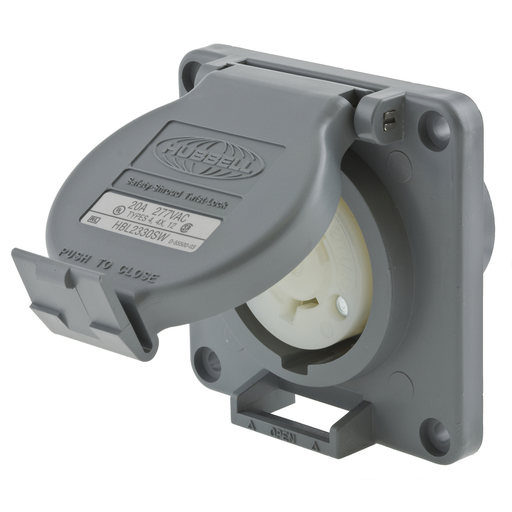

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL2330SW 20 Amp 277 Volt 2-Pole 3-Wire NEMA L7-20R Gray Watertight Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2330SW | Codale Part # 104675
$200.04/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Receptacle, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20R, Screw Terminal, PBT housing and flange, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L7-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Screw Terminal
Type
Shrouded, Heavy Duty
Voltage
277 Volt
Wattage
5540 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231167
Color
Gray
Environmental Conditions
Watertight
Product UPC
78358523116
Weight
0.60 lb

Dimensions

Height
2.69 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • High impact, thermoplastic housing for heavy-duty industrial environments
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Shrouded Watertight Construction
