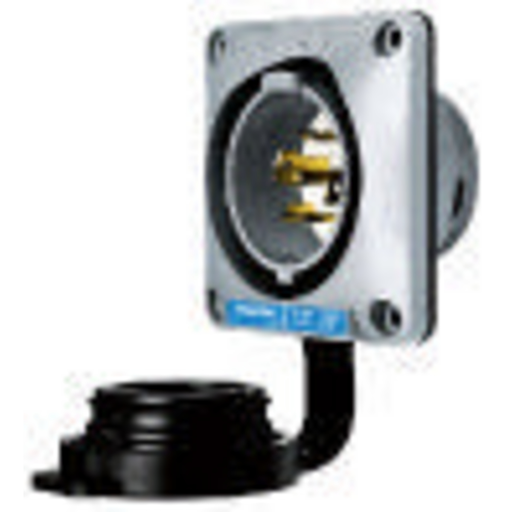

Hubbell HBL2515SW Locking WT S/SHRD INLT, 20A120/208V, L21-20P

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2515SW | Codale Part # 104686
$313.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

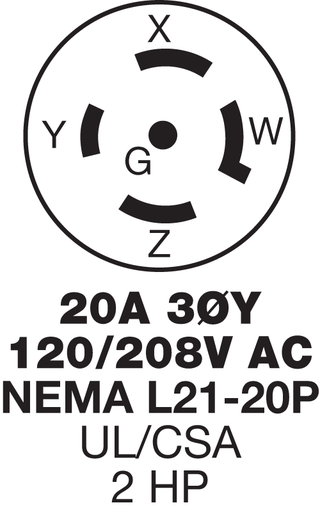

Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, NEMA L21-20P, Screw Terminal, Gray.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Grounding
Material
Composite
Mounting Type
Screw, Surface
NEMA
L21-20P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,Type 12,Type 4,UL
Tc Connection
Screw Terminals
Type
Shrouded, Single, Locking, Industrial Grade
Voltage
120/208 Volt
Wattage
4160 Watt
Wire Count
5
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231563
Color
Gray,White
Environmental Conditions
Watertight
Product UPC
78358523156
Weight
0.70 lb

Dimensions

Height
2.44 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Shrouded Watertight Construction
