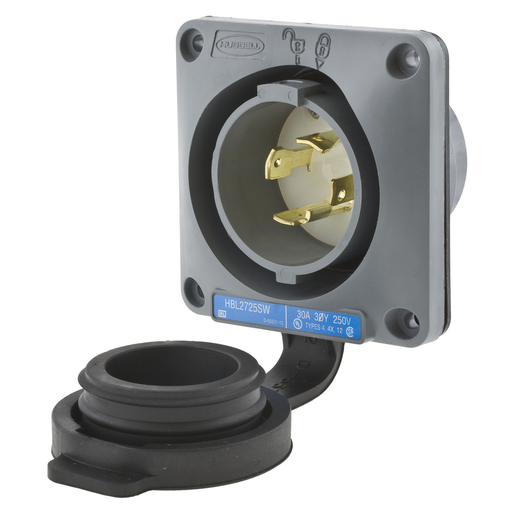

Hubbell HBL2725-SW 30A 3Ph 250V AC Twist-Lock Watertight SAFETY-SHROUD Gray VALOX Flanged Inlet

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2725SW | Codale Part # 104693
$510.38/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Gray.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Grounding
Material
Composite
Mounting Type
Screw, Surface
NEMA

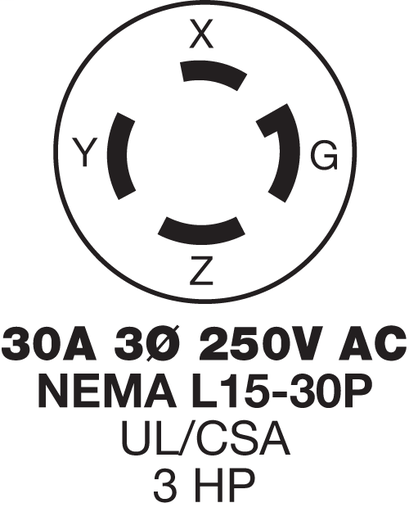

L15-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Tc Connection
Screw Terminals
Type
Shrouded, Single, Locking, Industrial Grade
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585231884
Color
Gray
Environmental Conditions
Watertight
Product UPC
78358523188
Weight
0.65 lb

Dimensions

Height
2.44 Inch
Length
3-3/4 Inch
Width
3.200 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
  • Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
  • Closure cap is included for environmental seal when device is not in use
  • Catalog number and color-coded voltage rating are easily visible even when in use
  • Shrouded Watertight Construction
