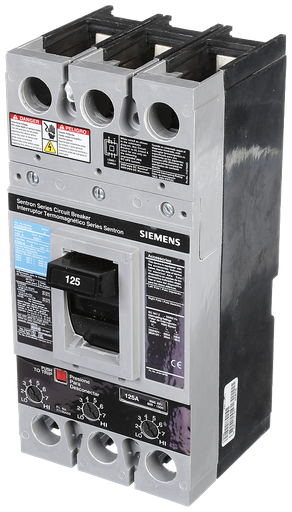

Siemens FXD63B125 3-Pole 600 VAC 125 Amp 22 kA Non-Interchangeable Trip Thermal Magnetic Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # FXD63B125 | Codale Part # 105850
$3,611.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Type FD Molded Case Circuit Breaker, 22kA @ 600V, 3 Poles, 125A, Non-interchangeable, Standard 40 Degree Celsius Breaker, Thermal Magnetic, Standard IC Rating

Technical Information

Actuator
Varying
Amperage
125 Amp
Applications
Standard 40C Breaker
Current
125 Amp
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
Tc Connection
N/A
Temperature Rating
40 degrees C
Trip Range
800 - 1500
Trip Type
Thermal Magnetic
Type
FXD6, Standard
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643211247
Product UPC
78364321124
Weight
8.500 lb

Dimensions

Height
6.9 Inch
Length
11.3 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Mexico
