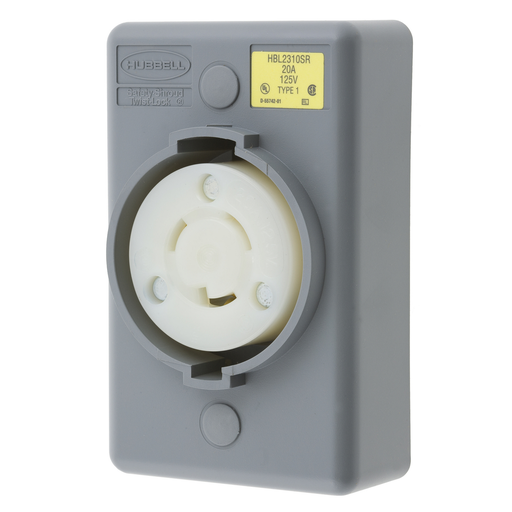

Hubbell HBL2310SR 20 Amp 125 Volt 2-Pole 3-Wire NEMA L5-20R Gray Surface Mount Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2310SR | Codale Part # 110426
$59.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

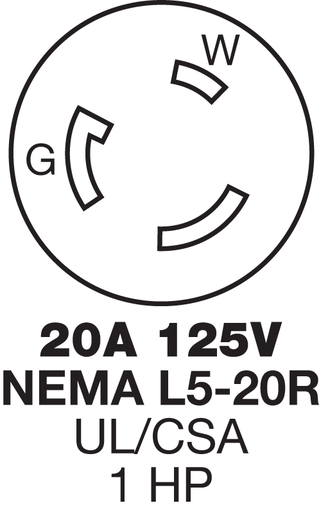

Locking Devices, Twist-Lock®, Safety-Shroud®, Surface Mount Receptacle, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5- 20R, Screw Terminal, Gray

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial Shrouded Watertight
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw, Surface, Recessed/Flush
NEMA
L5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234021
Color
Gray/White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523402
Weight
0.45 lb

Dimensions

Height
1.58 Inch
Length
4.56 Inch
Width
2.84 in

Certifications and Compliance

Country of Origin
USA
Features
  • Accepts Hubbell shrouded and standard NEMA locking plugs
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Surface Mount
