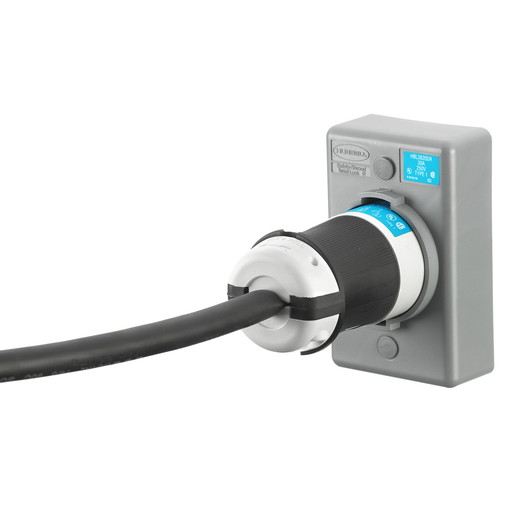

Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Hubbell HBL2620SR Locking S/SHRD Receptacle, L6-30R, SURF MT, GY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2620SR | Codale Part # 110442
$90.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Safety-Shroud® Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, RPT surface mounting, One Gang, Gray

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Grounding
Grounding
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L5-30R
Number of Gangs
1 Gang
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#10-32 Brass,Steel, Zinc Plated
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Shrouded, Heavy Duty
Voltage
250 Volt
Wattage
7500 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234342
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Housing Material
Impact Modified PBT
Product UPC
78358523434
Weight
0.45 lb

Dimensions

Height
1.58 Inch
Length
4.56 Inch
Width
2.800 in

Certifications and Compliance

Country of Origin
USA
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Surface Mount
