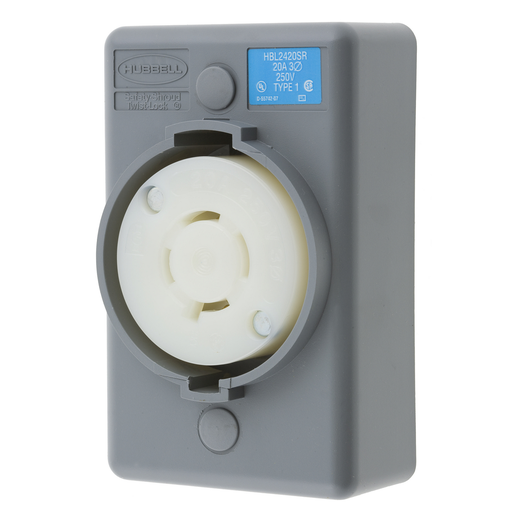

Hubbell HBL2420SR 20 Amp 250 Volt 3-Pole 4-Wire NEMA L15-20R Gray Surface Mount Locking Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2420SR | Codale Part # 110450
$83.21/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Safety-Shroud®, Surface Mount Receptacle, One Gang, 20A 3-Phase Delta 250V AC, 3-Pole 4- Wire Grounding, NEMA L15-20R, Screw Terminal, Gray.

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Industrial
Grounding
Grounding
Horsepower
3 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
L15-20R
Number of Gangs
1 Gang
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Shrouded, Heavy Duty
Voltage
250 Volt
Wattage
5000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585234502
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523450
Weight
0.50 lb

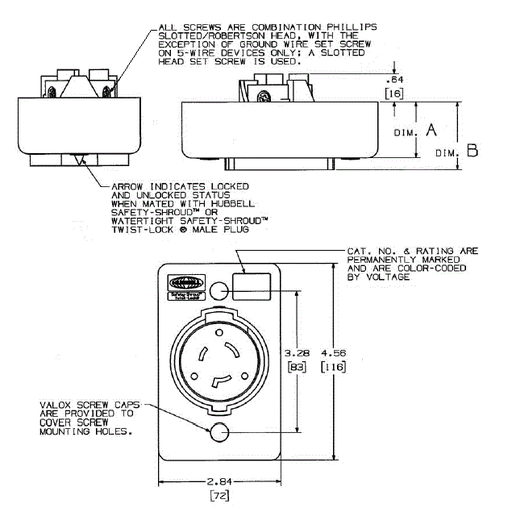

Dimensions

Height
1.71 Inch
Length
4.56 Inch
Width
2.800 in

Certifications and Compliance

Country of Origin
USA
Features
  • Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
  • Catalog number and color coded voltage rating are visible even when in use
  • Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
  • Surface Mount
