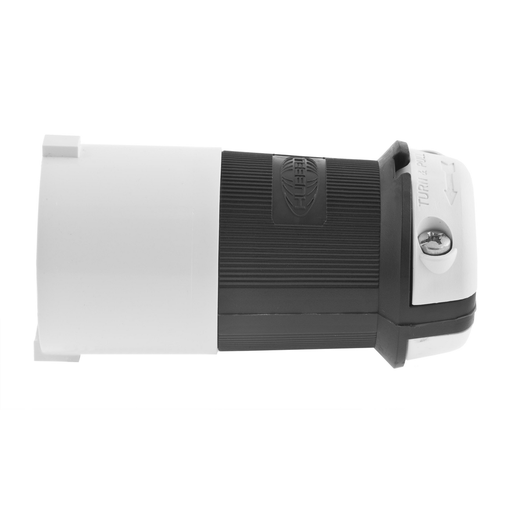

Hubbell HBL2731S 30 Amp 480 Volt 3-Pole 4-Wire NEMA L16-30P Black and White Locking Plug

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2731S | Codale Part # 110468
$183.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Safety-Shroud®, Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding, NEMA L16- 30P, Screw Terminal, Black and White Nylon Body, White PBT Shroud.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
30 Amp
Dielectric Strength
2000 V
Grounding
Yes
Horsepower
10 hp
Material
Nylon
Mounting Type
Cord
NEMA
L16-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C

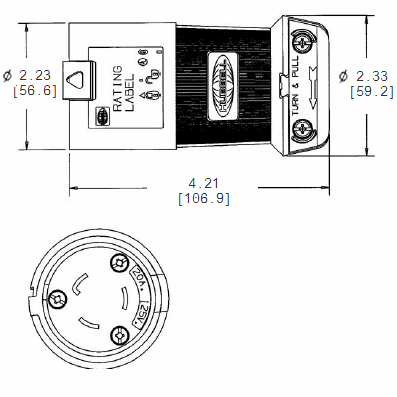

Size
2.33 in x 2.33 in x 4.21 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Safety-Shroud®

General Product Info

12-Digit UPC
783585234861
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358523486
Weight
0.45 lb

Dimensions

Height
4.21 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant shroud protects blades against bending and breaking.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Safety-Shroud
