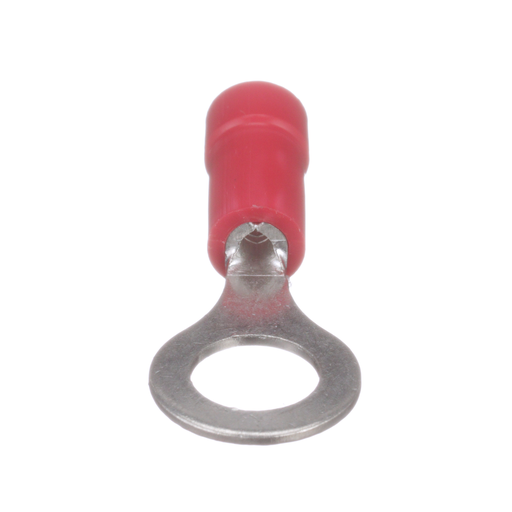

Image thumbnail 2

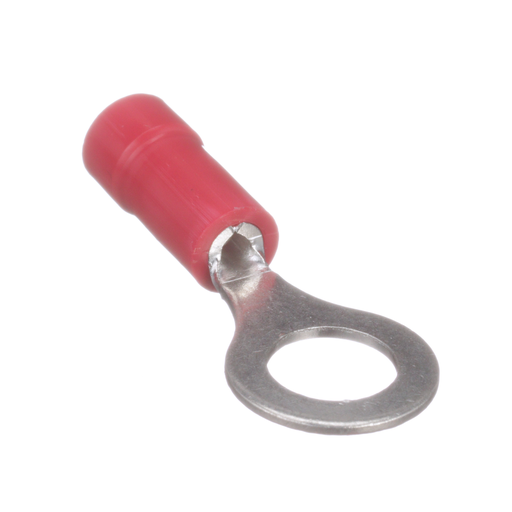

Image thumbnail 3
Image thumbnail 4
Email

Panduit PV18-14R-CY Pan-Term® Vinyl Insulated Ring Terminal

Manufacturer: Panduit | Catalog # PV18-14R-CY | Codale Part # 115153
$194.60/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
Ring Terminal, 22 . 18 AWG, 1/4" stud size, vinyl insulated, funnel entry, standard package.

Technical Information

Barrel Length
0.44 in
Barrel Type
Funnel
Color Coding
Red
Conductor Size
22-18 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
105 degrees C
Size
1/4"
Standard
CSA,E2186,UL
Stud Size
1/4 in
Tc Connection
Funnel Entry
Temperature Rating
221 degrees F
Tongue Thickness
0.03 in
Tongue Width
0.46 in
Type
Loose-Piece
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983688562
Color
Red
Finish
Tin Plated
Product UPC
07498368856
UNSPSC
39121409
Weight
0.0100 lb

Dimensions

Outer Diameter
0.15 in
Overall Length
1.11 in
Width
7.8 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
