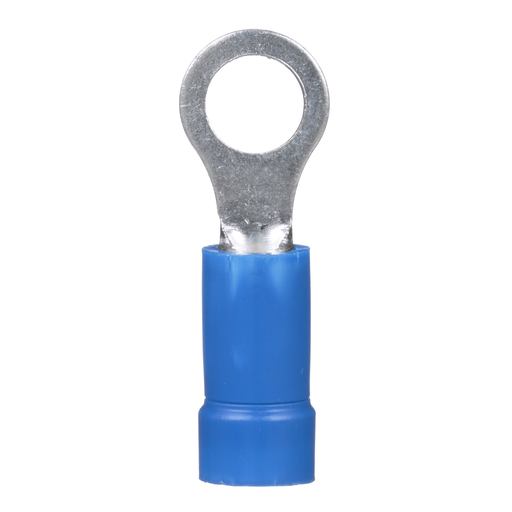

Panduit PV14-10R-C 16-14 AWG Vinyl Insulated Ring Terminal

Manufacturer: Panduit | Catalog # PV14-10R-C | Codale Part # 115175

$53.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Ring Terminal, Vinyl Insulated, 16 - 14 American Wire Gauge (AWG), No. 10 Stud Size, Funnel Entry. Insulation support helps to prevent wire damage in bending applications. Ring tongue design assures a secure connection in high vibration applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up 600 Volts per UL 486A/B. Standard Package.

Technical Information

Barrel Length
0.46 in
Barrel Type
Funnel
Color Coding
Blue
Conductor Size
16-14 AWG
Enclosure
Ring shape
Insulation Material
PVC
Material
Copper
Max Operating Temperature
221 degrees F
Size
#10
Stud Size
#10
Tc Connection
Funnel Entry
Temperature Rating
221 F
Type
Loose-Piece
Voltage
600 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Pan-Term

General Product Info

Color
Blue
Finish
Tin Plated
Product UPC
07498380120

Dimensions

Overall Length
0.92 in
Width
7.9 mm

Certifications and Compliance

Country of Origin
MX
Barrel Type
Funnel
Codale Part No.
115175
Color Code
Blue
Flammability Rating
UL 94 V-0
For Use With
CT-100A, CT-600-A (CT-550CH) CT-1550, CT-1551, CT-2500(CT-2550CH)
Packaging Type
Bottle
Product Long Description
Ring Terminal, Vinyl Insulated, 16 - 14 American Wire Gauge (AWG), No. 10 Stud Size, Funnel Entry. Insulation support helps to prevent wire damage in bending applications. Ring tongue design assures a secure connection in high vibration applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up 600 Volts per UL 486A/B. Standard Package.
Prop 65 Warning
No
Sub Brand
Pan-Term
