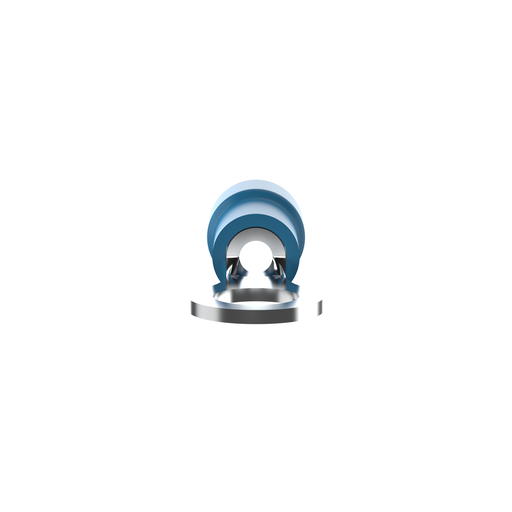

Image thumbnail 2
Image thumbnail 3

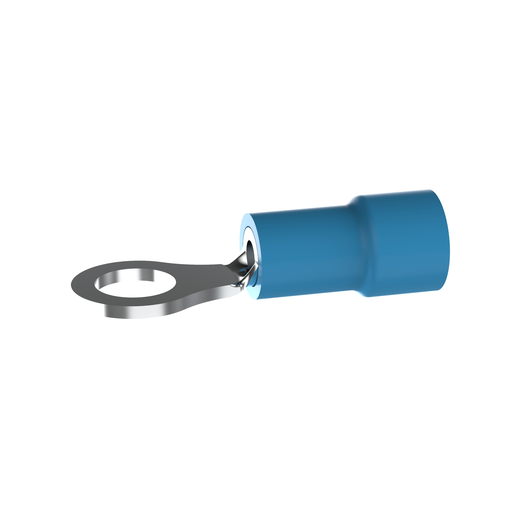

Image thumbnail 4
Email

Panduit PV14-10R-M 16-14 AWG Vinyl Insulated Ring Terminal

Manufacturer: Panduit | Catalog # PV14-10R-M | Codale Part # 115177
$532.62/m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The PV14-10R-M Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Extented barrel insulation provides protection and strain relief when crimped.

Technical Information

Barrel Length
0.46 in
Barrel Type
Funnel
Color Coding
Blue
Conductor Size
16-14 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
#10
Tc Connection
Funnel Entry
Temperature Rating
221 F
Tongue Thickness
0.03 in
Tongue Width
0.31 in
Type
Ring Terminal
Voltage
600.0
Wire Size
14 AWG

Packaging

Pkg Qty
1000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983801213
Color
Blue
Finish
Tin Plated
Product UPC
07498380121
Weight
2.4600 lb

Dimensions

Overall Length
0.92 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
