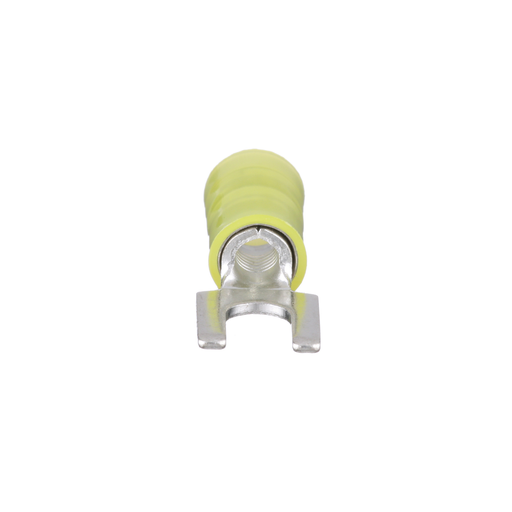

Image thumbnail 2

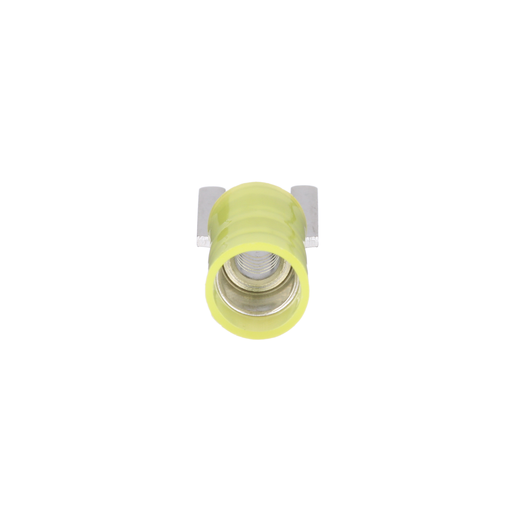

Image thumbnail 3

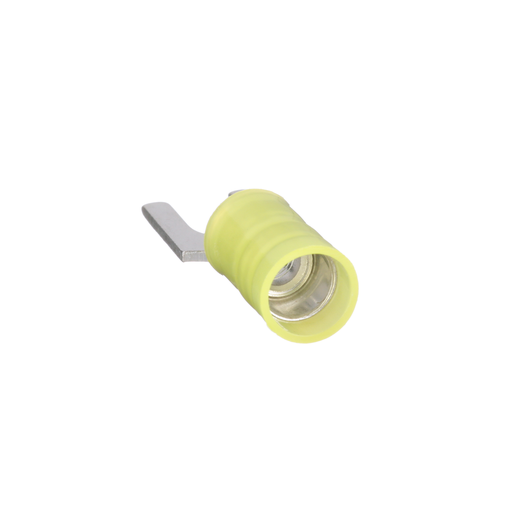

Image thumbnail 4
Email

Panduit PN10-10F-L 12-10 AWG Insulated Fork Terminal

Manufacturer: Panduit | Catalog # PN10-10F-L | Codale Part # 115462
$272.06/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
150 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The PN10-10F-L Pan-Term® Terminal is a nylon insulated, fork terminal. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.52 in
Barrel Type
Grip Sleeve
Color Coding
Yellow
Conductor Size
10 AWG
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
105 degrees C
Size
10 in
Standard
CSA,E2186,UL
Tc Connection
Standard
Temperature Rating
221 degrees F
Tongue Thickness
0.04 in
Tongue Width
0.37 in
Type
Open Jaw Fork
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983803200
Color
Black on Yellow
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498380320
Weight
0.3000 lb

Dimensions

Overall Length
1.04 in
Width
9.4 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed 587H E52164; CSA Certified LR31212
