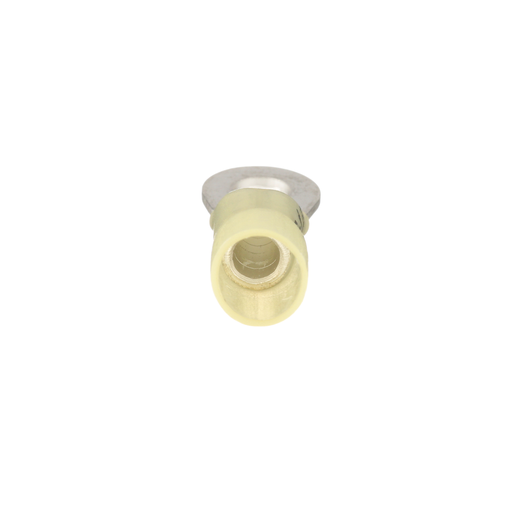

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit PH10-8R-E Ring Terminal, Yellow, Heat Shrink, 10-12 AWG, #8 Stud, PK20

Manufacturer: Panduit | Catalog # PH10-8R-E | Codale Part # 115954
$417.24/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The PH10-8R-E Pan-Term® Terminal is a heat shrink ring terminal that provides a sealed, protective barrier ideal for high moisture applications. The ring tongue design assures a secure connection in high vibration applications, and the brazed seam protects terminal barrel from splitting during the crimp process.

Technical Information

Barrel Length
0.25 in
Barrel Type
Brazed Seam
Color Coding
Yellow
Conductor Size
12-10 AWG
Enclosure
ring shaped
Material
Copper
Max Operating Temperature
125 degrees C
Size
#8
Tc Connection
Standard
Temperature Rating
230 F
Tongue Width
9.4 mm
Type
Ring Terminal
Voltage
600.0
Wire Size
10 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983818105
Color
Yellow
Finish
Tin Plated
Product UPC
07498381810
Weight
0.0015 lb

Dimensions

Overall Length
1.22 in
Width
0.37 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
