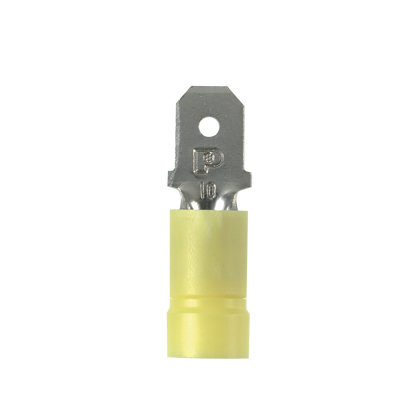

Product image for Panduit DV10-250M-L Vinyl Barrel Insulated Male Disconnect
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit DV10-250M-L Vinyl Barrel Insulated Male Disconnect

Manufacturer: PANDUIT | Catalog # DV10-250M-L | Codale Part # 116038
$256.96/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
50 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant male disconnect is made of copper and is nickel-plated. It is barrel insulated in yellow vinyl housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 0.98" (24.9 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry barrel configuration and a brazed seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Brazed Seam
Color Coding
Yellow
Conductor Size
10 AWG
Material
Copper
Max Operating Temperature
194 degrees F
Tc Connection
funnel Entry
Temperature Rating
194 F
Type
Disconnect
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983824106
Color
Yellow
Finish
Nickel
Product UPC
07498382410
UNSPSC
39121409
Weight
0.8400 lb

Dimensions

Height
0.24 Inch
Overall Length
0.98 in
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
