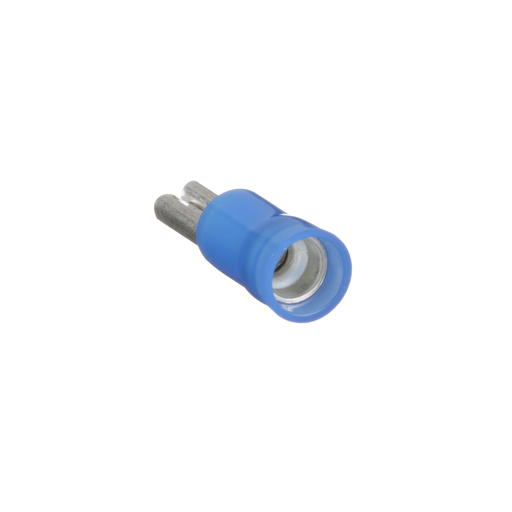

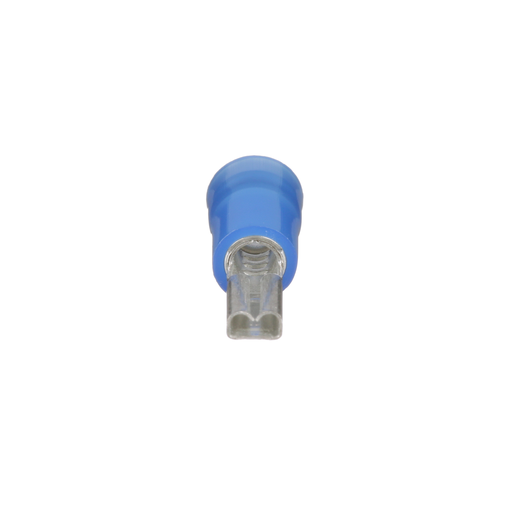

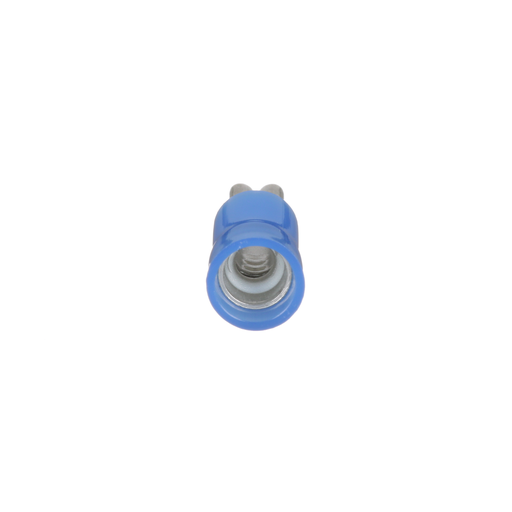

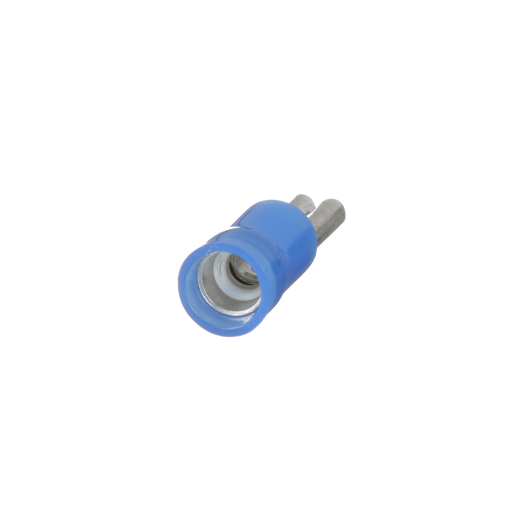

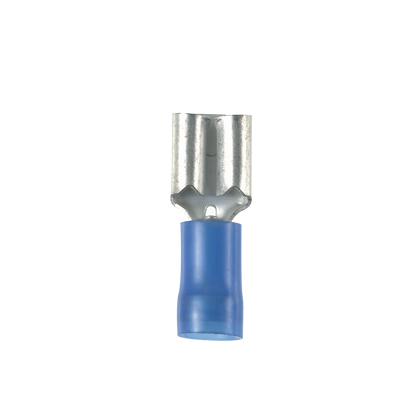

Panduit DNF14-110-C Nylon Barrel Insulated Female Disconnect

Manufacturer: Panduit | Catalog # DNF14-110-C | Codale Part # 116135
$246.64/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a blue, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm.). It is 0.75" (19.1 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Blue
Conductor Size
16-14 AWG
Material
Brass
Max Operating Temperature
194 degrees F
Tc Connection
Funnel
Temperature Rating
194 degrees F
Type
Disconnect
Voltage
300 Volt
Wire Size
16-14 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983826506
Color
Blue
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498382650
UNSPSC
39121409
Weight
0.0024 lb

Dimensions

Height
0.08 Inch
Overall Length
0.75 in
Width
0.15 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
