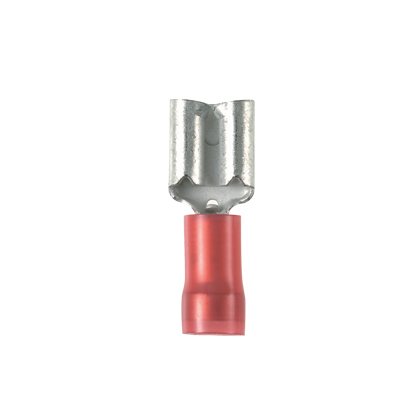

Panduit DNF18-110-C Nylon Barrel Insulated Female Disconnect

Manufacturer: Panduit | Catalog # DNF18-110-C | Codale Part # 116196
$234.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.69" (17.5 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
194 degrees F
Standard
CSA,E2186,UL
Tc Connection
Funnel
Temperature Rating
194 degrees F
Type
Disconnect
Voltage
300 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827046
Color
Red
Finish
Rust-Proof Plating, Vinyl Coated
Product UPC
07498382704
UNSPSC
39121409
Weight
0.1400 lb

Dimensions

Height
0.08 Inch
Overall Length
0.69 in
Width
0.15 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
