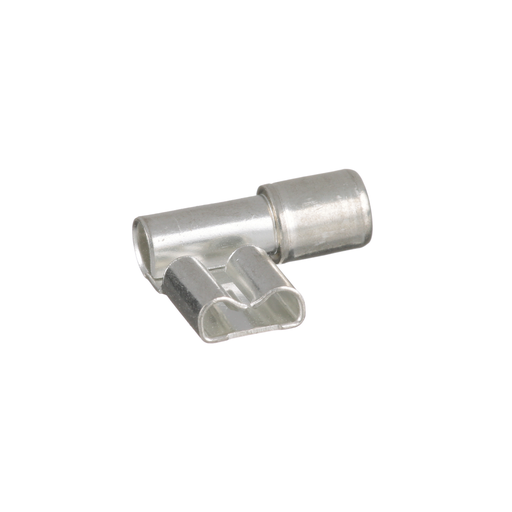

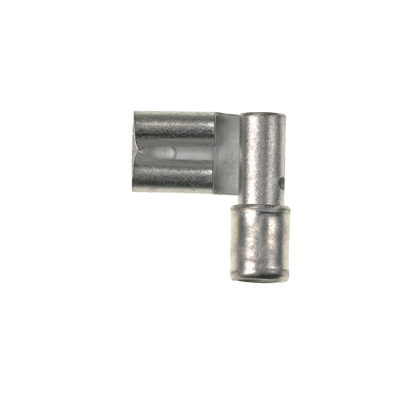

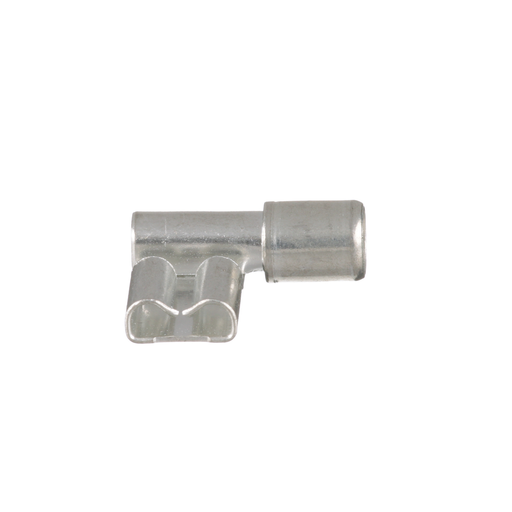

Panduit DR10-250-L Non-Insulated Right Angle Female Disconnect

Manufacturer: PANDUIT | Catalog # DR10-250-L | Codale Part # 116227
$279.84/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 0.61" (15.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Sleeved Barrel
Color Coding
Metallic
Conductor Size
10 AWG
Material
Brass
Max Operating Temperature
150 degrees C
Tc Connection
Standard
Temperature Rating
302 F
Type
Disconnect
Voltage
600 Volt
Wire Size
10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983827367
Finish
Tinned
Product UPC
07498382736
UNSPSC
39121409
Weight
0.0024 lb

Dimensions

Depth
0.57 Inch
Height
0.57 Inch
Overall Length
0.61 in
Width
0.3 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
