Panduit P6-14R-E Large Wire Non-Insulated Ring Terminal

Manufacturer: Panduit | Catalog # P6-14R-E | Codale Part # 116579
$361.05/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

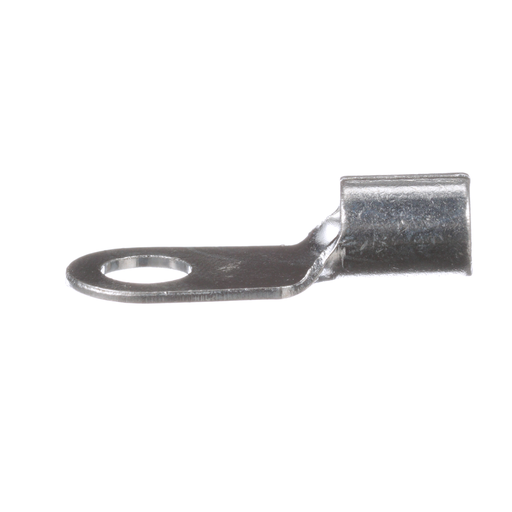

The P6-14R-E Pan-Term® Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.

Technical Information

Barrel Length
0.49 in
Barrel Type
Brazed Seam
Color Coding
Metallic
Conductor Size
6 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
150 degrees C
Size
1/4"
Tc Connection
Standard
Temperature Rating
302 F
Tongue Thickness
0.045 in
Tongue Width
0.47 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
6 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983870677
Color
NA
Finish
Tin Plated
Product UPC
07498387067
Weight
0.2300 lb

Dimensions

Outer Diameter
0.32 in
Overall Length
1.21 in
Width
0.47 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
Prop 65
  • No
