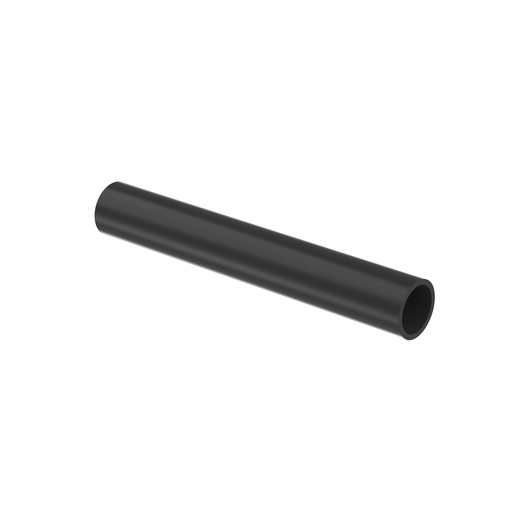

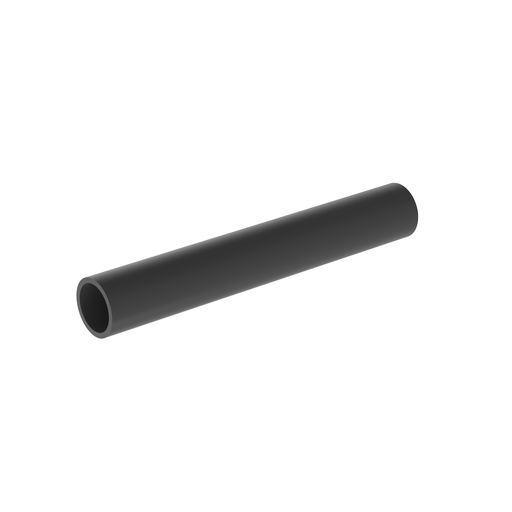

Product image for Panduit HSTTA75-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 0.75" - 0.25" ID
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit HSTTA75-48-5 Heat Shrink, Black, Adhesive. Lined PO, 4' L, 0.75" - 0.25" ID

Manufacturer: PANDUIT | Catalog # HSTTA75-48-5 | Codale Part # 118219
$46.74/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet

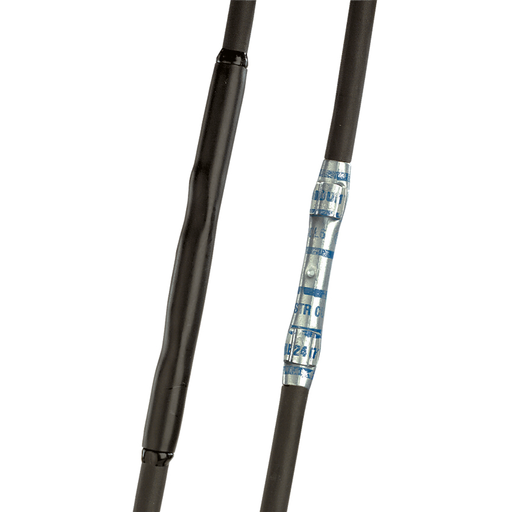

The HSTTA75-48-5 Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67.F to 230.F (-55.C to 110.C). Cross-linked Polyolefin. 0.75" (19.1 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Min Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-67 to -230 degrees F
Type
Adhesive-Lined, Standard

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983369942
Color
Black
Product UPC
07498336994
Weight
1.4000 lb

Dimensions

Inside Diameter
6.4 mm
Outside Diameter
19.1 mm
Overall Length
4 ft
Thickness
2.2 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
South Korea

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL: E342365; Mil Spec: AMS-DTL-23053/4 Class 3
