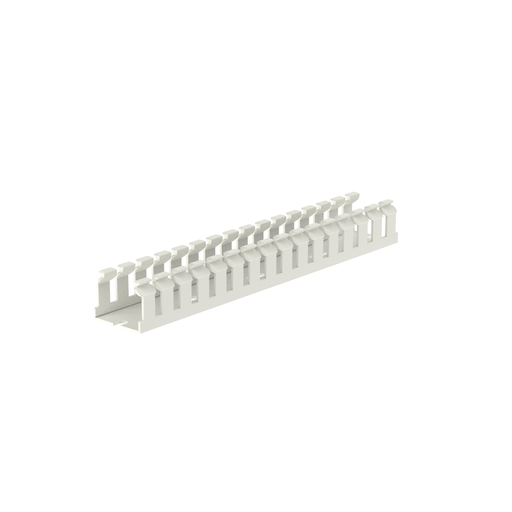

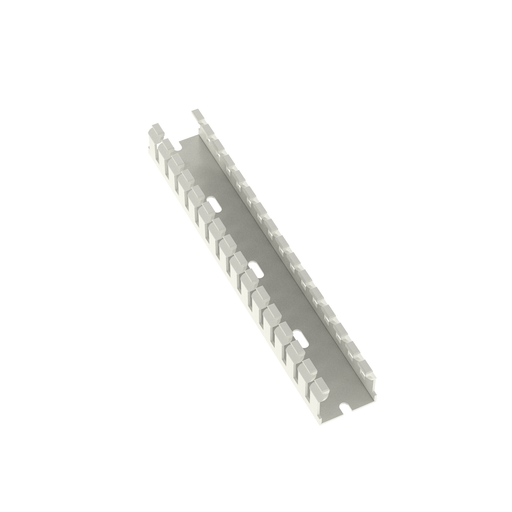

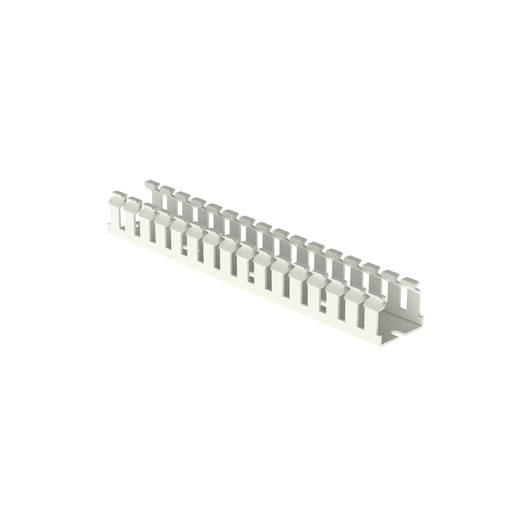

Panduit F1X1WH6 Narrow Slotted Wiring Duct, PVC, 1" x 1" x 6ft, White

Manufacturer: Panduit | Catalog # F1X1WH6 | Codale Part # 118263
$26.27/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The F1X1WH6 Panduct Lead-Free PVC Narrow Slot Wiring Duct features a narrow slot/finger design that closely matches the spacing of high-density components. Upper and lower scorelines allow for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 1.13" x 1.25" (28.7 mm x 31.8 mm) and 6' (1.83 m) long. Cover sold separately. Color White. 6 per package.

Technical Information

Applications
Indoor
Material
PVC
Mounting Type
Mounting Holes
Size
32.0 x 28.7 mm
Tc Connection
Standard Mounting Holes
Type
Type F

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375028
Color
White
Product UPC
07498337502
Weight
0.6420 lb

Dimensions

Height
1.13 Inch
Length
1.8 m
Overall Length
6 ft
Thickness
0.06 IN
Width
32 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant, BABA Compliant
