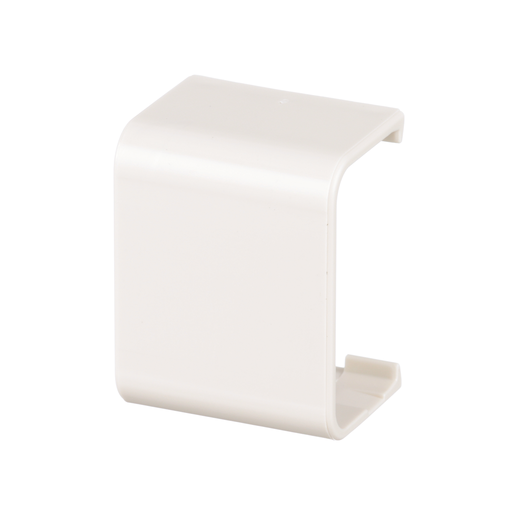

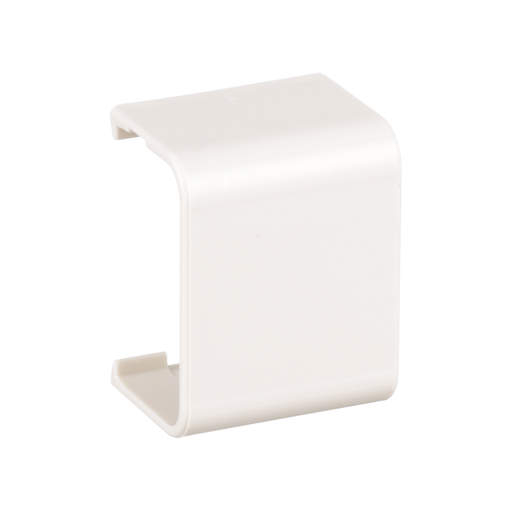

Product image for Panduit CFX10IW-X LD10 / LDPH10 / LD2P10 Power Rated Coupling
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit CFX10IW-X LD10 / LDPH10 / LD2P10 Power Rated Coupling

Manufacturer: Panduit | Catalog # CFX10IW-X | Codale Part # 119434
$4.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The coupler fitting is used to efficiently manage cable placement. It is designed to be used with LD10, and LDPH10 surface raceway and is a 1.24 inch length. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is Off-White.

Technical Information

Applications
Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environment
Cover Type
Coupler
Material
ABS Plastic
Mounting Type
Snap-On
Type
Power Rated

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983530748
Color
Off-White
Product UPC
07498353074
UNSPSC
39131711
Used With
LD10, LDPH10, and LD2P10 Raceway
Weight
0.0100 lb

Dimensions

Height
0.93 Inch
Length
1.24 Inch
Overall Length
1.24 in
Width
41.1 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant.
Prop 65
  • No
