Klein 33527 General Purpose 1000V Insulated Tool Kit 22-Piece

Manufacturer: Klein Tools | Catalog # 33527 | Codale Part # 123643
$1,259.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
This 22-piece tool kit includes the must-have insulated tools professional electricians need. The high-leverage design of both the side-cutting and diagonal-cutting pliers provides more cutting power while the pivot joint is hot-riveted for smooth action and no wobble. The Cushion-Grip on the round-shank screwdrivers provide greater torque and comfort. The wire stripper/cutting tools, pump pliers and skinning knife provide excellent choices for any job. Made in the USA.

Technical Information

Applications
General Application Near Energized Source
Handle Type
Dual Insulated
Insulated?
Yes
Number of Rows
3
Type
General Purpose

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644335273
Handle Color
Orange
Handle Material
High Dielectric Plastic
Product UPC
09264433527
Weight
24.300 lb

Dimensions

Depth
19.2 Inch
Height
8-1/4 Inch
Length
15-3/8 Inch
Overall Length
15.375 in
Width
18.875 in

Certifications and Compliance

Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Features

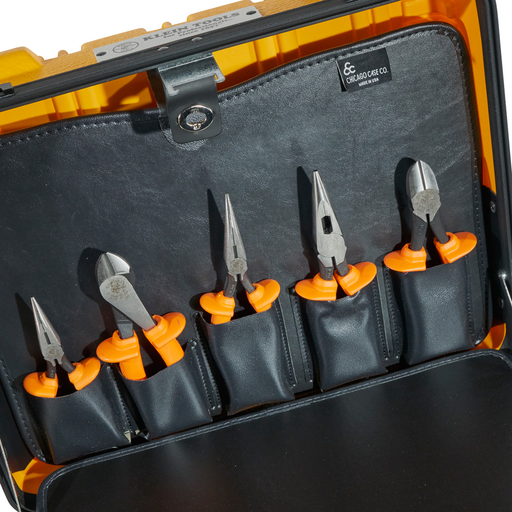

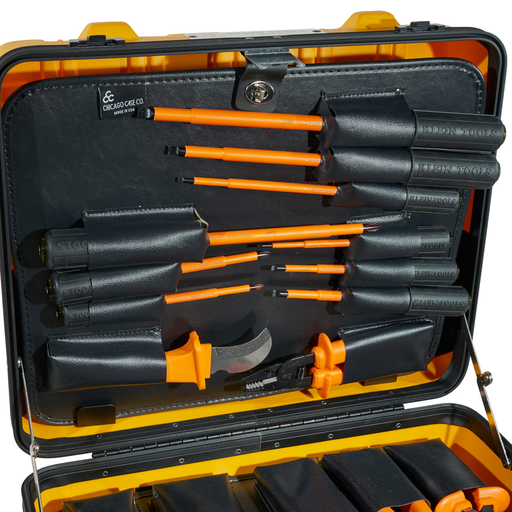

  • A comprehensive set of 22 insulated tools including assorted pliers (8), screwdrivers (9), pump pliers, wire stripper/cutter, cable cutter, lineman's skinning knife and a crimping/cutting tool. (See individual tool listings for more details)

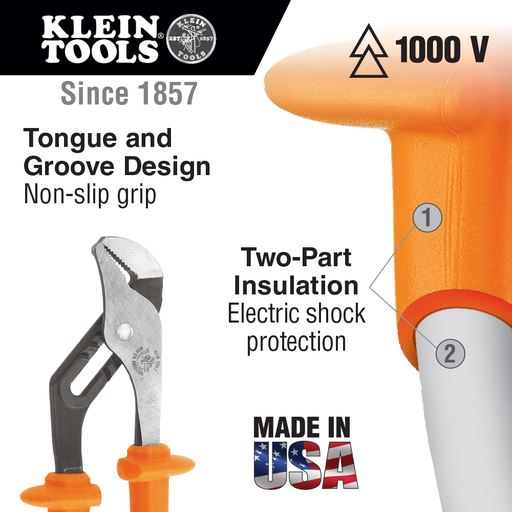

  • Two layers of insulation provide protection against electric shock

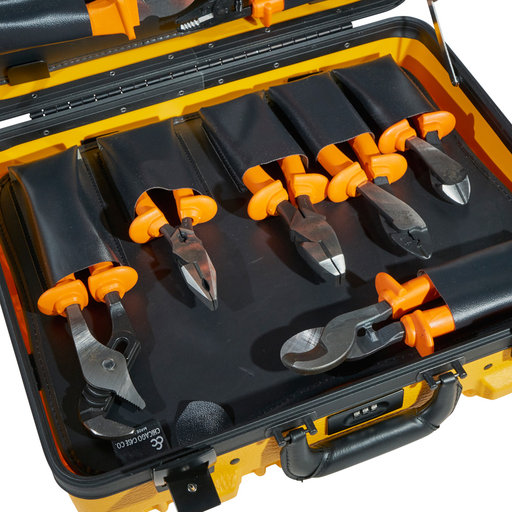

  • The custom case includes 3 pallets with custom-fitted pockets for each tool, piano-hinged cover has both a combination lock and two key-locked latches for security, storage space behind the pallets to keep important papers and accessory items
  • Replacement case available (Cat. No. 33537)
  • Meets or exceeds IEC 60900: 2012, ASTM F1505-10 standards for insulated tools
  • Case Includes 3 Pallets
Warnings
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
Replaced By Products
  • 1005INS
  • 11045INS
  • 12098INS
  • 1571INS
  • 33537
  • 54757
  • 6014INS
  • 6017INS
  • 6024INS
  • 6027INS
  • 6028INS
  • 6034INS
  • 6124INS
  • 63050INS
  • 6334INS
  • 6337INS
  • D200028INS
  • D200048INS
  • D20009NEINS
  • D2036INS
  • D2037INS
  • D2038NINS
  • D2207INS
  • D50210INS
