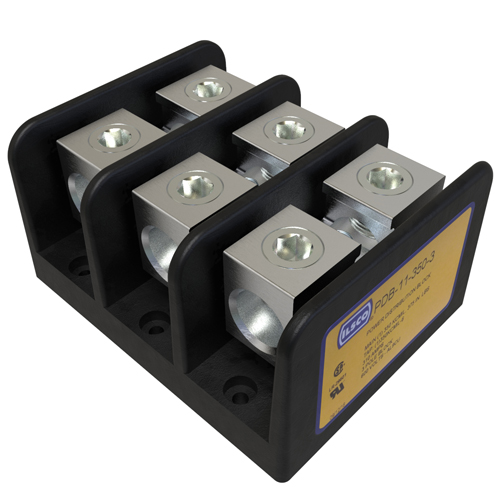

Ilsco PDB-11-350-3 Power Distribution Block, Dual Rated, Line Conductor Range 350-6, Load Range 350-6, 1 Port Per Pole Line Side, 1 Port Per Pole Load Side, 3 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-11-350-3 | Codale Part # 124061
$275.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 350 kcmil - 6 Str, 2 conductors, 6 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Black, 3 poles, 1 ports per pole primary, 1 ports per pole secondary,

Technical Information

Amperage
CU:310 AMP
Applications
Power Distribution Block
Conductor Size
6 AWG-350 kcmil
Enclosure
Valox
Material
Aluminum
Number of Conductors
2
Number of Poles
3 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Terminal Type
Screw
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669710830
Color
Black
Finish
Tin Plated
Product UPC
78366971083
