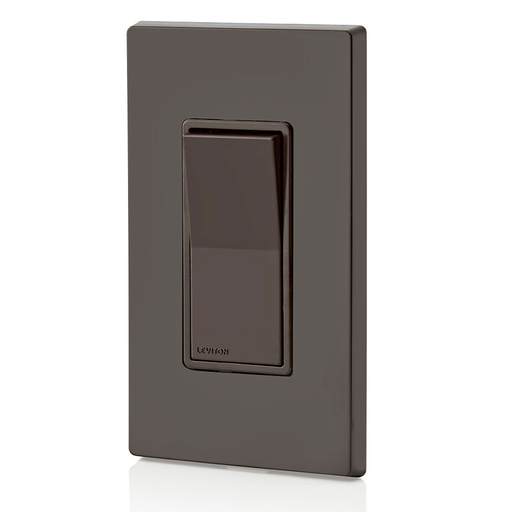

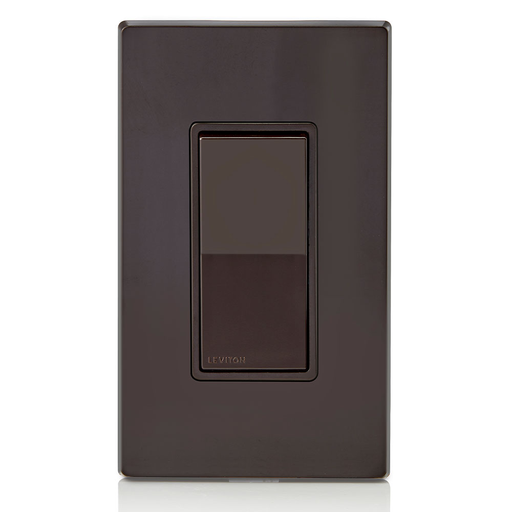

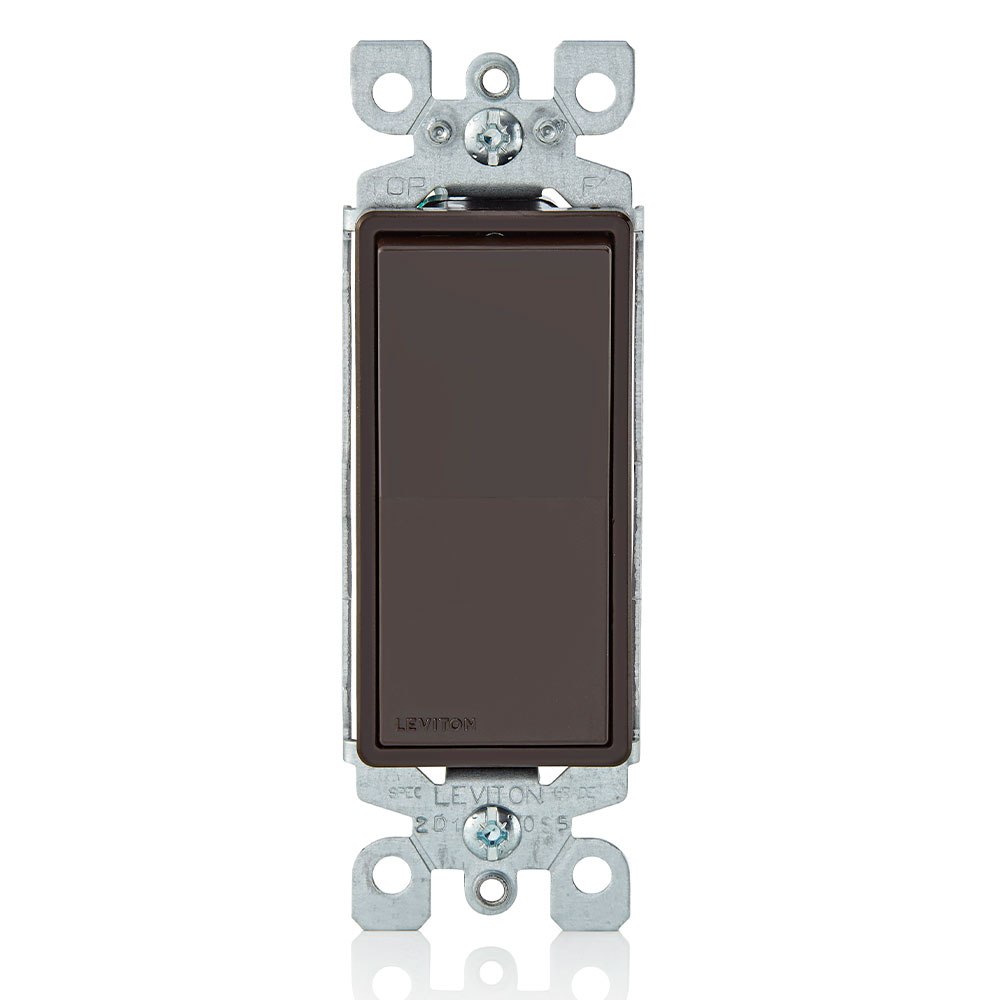

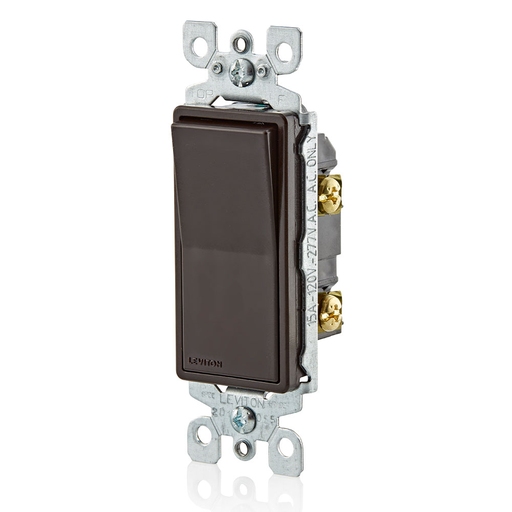

Leviton 5601-2 120/277 VAC 15 Amp 1-Pole 2 Hp Brown Thermoplastic Grounding Standard Rocker Decorator Quiet Switch

Manufacturer: Leviton | Catalog # 5601-2 | Codale Part # 124187
$5.21/ea
ea
Log in or register to view your price, purchase history, and more!
43 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Grounding - Brown

Technical Information

Actuator
Rocker
Amperage
15 Amp
Applications
Residential
Body Material
Thermoplastic
Connection Type
Quickwired Push-In,Side Wired
Contact Rating
120/277 V
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1 Pole
Operating Temperature
-40 To 120 degrees C
Size
4.200 H x 1.399 W x 1.453 D IN
Standard
CSA,UL
Tc Connection
Quickwired Push-In;Side Wired
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Quiet,Rocker Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora

General Product Info

12-Digit UPC
078477517000
Color
Brown
Environmental Conditions
Flammability (Rated V-2 per UL94)
Product UPC
07847751700
Weight
0.1500 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
USA
Features
  • Switch frame shields against dust and fits in wallplate to prevent rocker binding
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Sturdy construction for long service life
  • Full-rated current capacity with tungsten, fluorescent or resistive loads
  • Complements every dcor
  • Limited 2-year warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
  • CONVENIENT - Quiet switch controls load from a single location
  • DURABLE - Impact-resistant thermoplastic nylon construction
  • EASY - Quick wire push-in and side wiring for easy installation
  • COMPATIBLE - For use with Leviton Decora wallplates
