Burndy YGHP29C6W6W Cu Compression Ground Rod Connector, #8 Sol - #6 Str, 1/2" - 5/8" Rod Dia

Manufacturer: Hubbell-Burndy | Catalog # YGHP29C6W6W | Codale Part # 127923
$138.66/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet
Cu Compression Ground Rod Connector, #8 Sol - #6 Str, 1/2" - 5/8" Rod Dia.

Technical Information

Applications
For Direct Burial In Earth And Concrete
Conductor Size
1/0 AWG-250 kcmil
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size
0.75 IN Length
Tap Size
6, 8 AWG
Type
Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810085295
Product UPC
78181008529
Weight
0.2650 lb

Dimensions

Height
2.09 Inch
Length
3/4 Inch
Width
0.93 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features

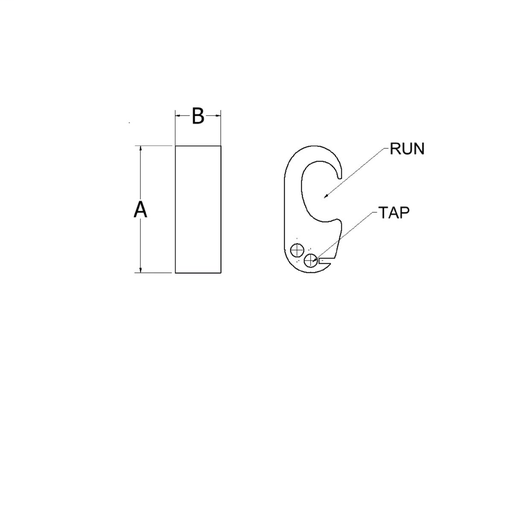

  • Irreversible compression ground tap figure 6 can be used as a tap connector or as a tap splice connector
  • UL467 Listed
  • Acceptable for direct burial in earth and concrete
  • Prefilled with PENETROX™ compound and strip sealed
