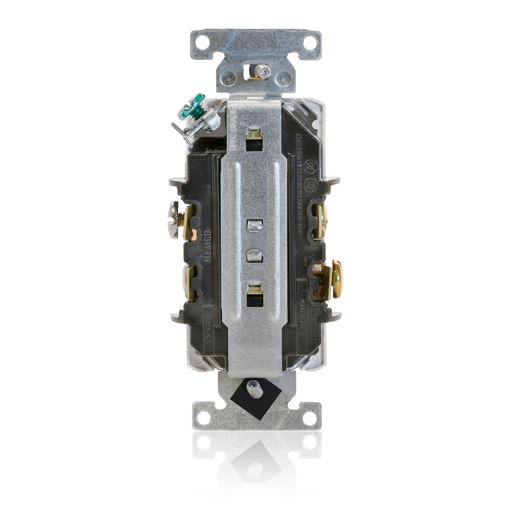

Image thumbnail 2

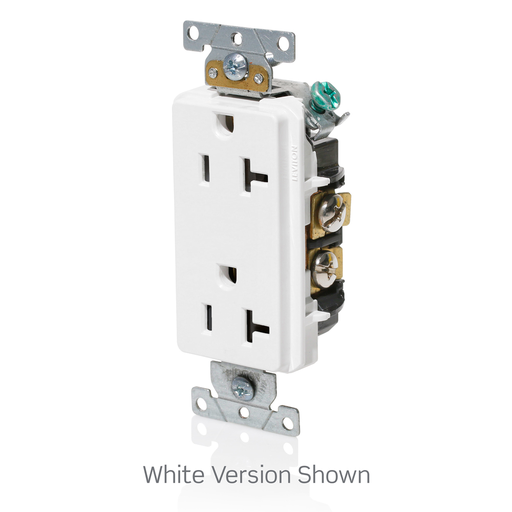

Image thumbnail 3
Image thumbnail 4
Email

Leviton 16352-W 20amp Commercial Grade White Decora Receptacle

Manufacturer: Leviton | Catalog # 16352-W | Codale Part # 135470
$17.95/ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Decora Plus Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, , , Back & Side Wired, Steel Strap, - White

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-1, WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 1.14 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Outlet
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477819722
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
Product UPC
07847781972
Weight
0.1900 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Patents
  • MX321216
  • US8684771
NEMA
  • 5-20R
