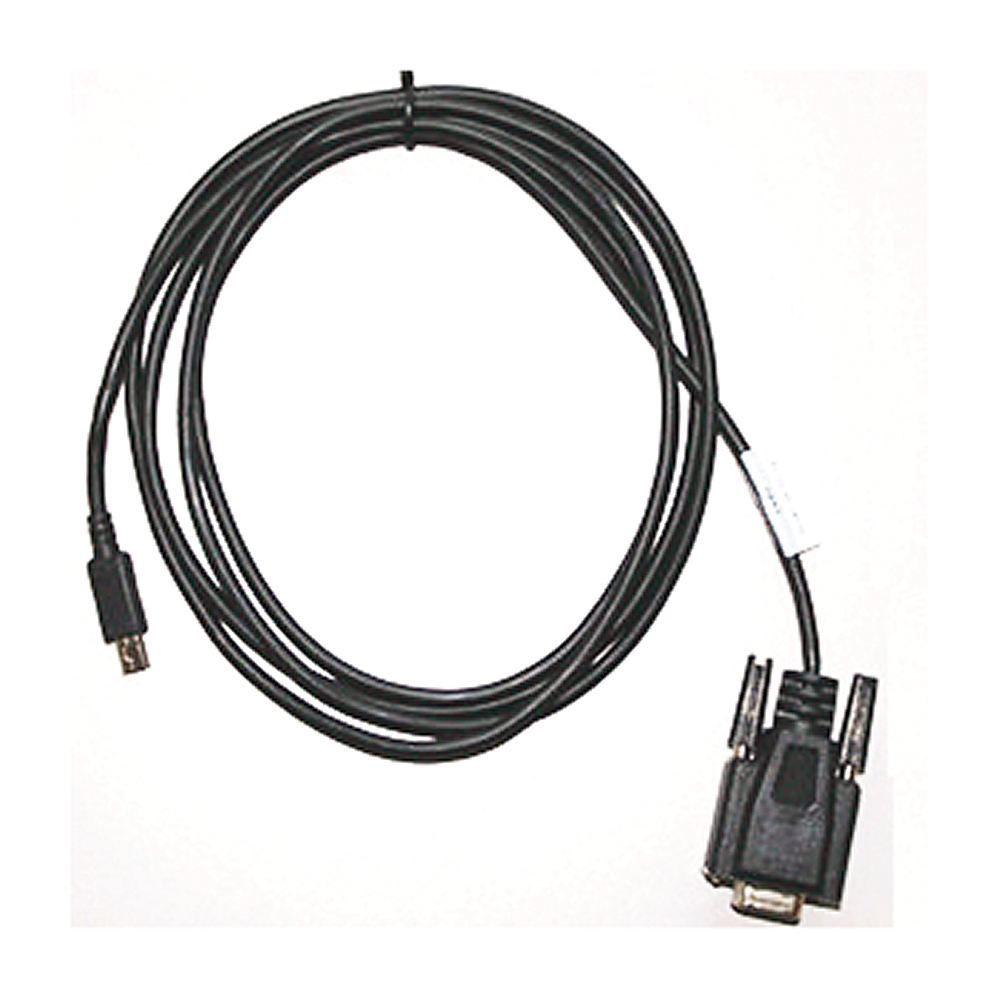

Allen-Bradley 1440-SCDB9FXM2 Communication Cable

Manufacturer: Allen Bradley / Rockwell | Catalog # 1440-SCDB9FXM2 | Codale Part # 1395788
$282.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Communication Cable

Technical Information

Applications
For XM Module Configuration by using the XM Serial Configuration Utility
Connector Type
9-Pin Female Serial to Micro-USB
Standard
GOST,KC
Type
Communications Cable

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
XM

General Product Info

12-Digit UPC
611320983395
Product UPC
61132098339
Weight
0.1900 lb

Dimensions

Cable Length
2 m
Length
2 m
Features
  • Provides ability to monitor shaft, casing, or pedestal vibration in rotating equipment
  • Includes module configuration managed by a ControlLogix® controller and the Studio 5000™ Logix Designer application
  • Allows communication via DeviceNet™ network
  • Includes one tachometer channel that accepts input from most speed measurement sensors and can measure speeds 11.2M RPM with pulse rates 150,000 events per revolution
  • Supports Dynamix 2500 and Enpac 2500 Data Collectors
  • Module I/O and configuration tables are exposed as common tags in the Studio 5000 Logix Designer application
  • Provides ability to schedule automated data collection from any number of 1444 series or 1440 series monitors or machines
  • Allows the ability to import/export data from any OPC server
  • Includes one virtual relay
  • Includes the ability to download defect frequencies to collectors
  • Includes two channels which connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Offers built-in and user editable rule sets
  • Communicates via ControlNet™ network (connected through a 1440-ACNR ControlNet Adapter)
  • Supports maximum of 10 1440-DYN02-01RJ Dynamic Measurement Modules on a ControlNet™ network
  • Includes single on-board relay
  • Offers signal processing which provides two levels of integration and FFT processing with as many as 30 measured parameters
  • Offers live data view from any 1444 series monitor on any machine, by any user from any location
  • Includes four virtual relays or four additional relays (when connected to an XM® 441 Expansion Relay Module)
  • Includes one digital output for use with an XM-442 EODS Relay module
  • Includes two channels connect common vibration sensors (e.g., eddy current probes, accelerometers) and any sensor that outputs a voltage signal
  • Offers signal processing which provides synchronous or asynchronous measurements
  • Includes two tachometer inputs, each measures 25V (50V max. peak to peak)
  • Offers single on-board relay
  • Allows tags to be imported from a Logix controller, scheduled or on demand
  • Includes fault frequency identification
