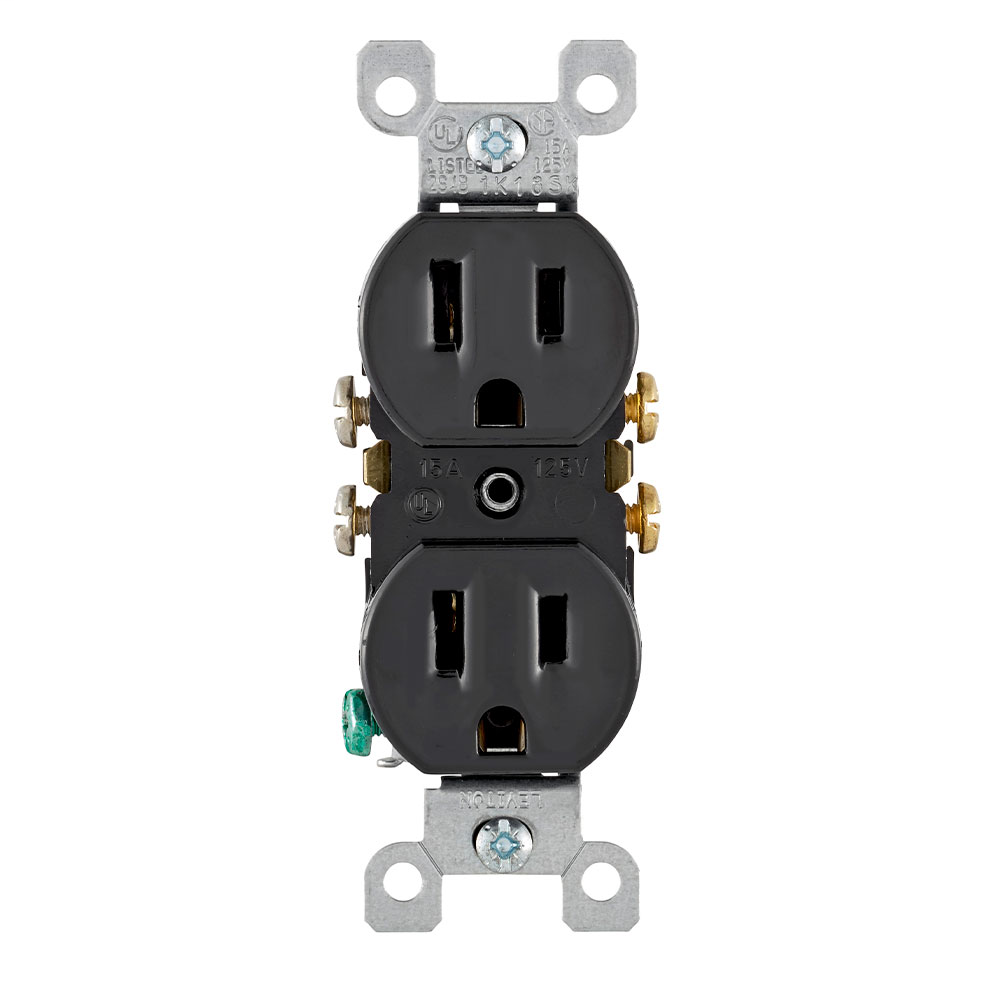

Product image for Leviton 5320-ECP 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R Black Thermoplastic Grounding Straight Blade Duplex Receptacle
Image thumbnail 0

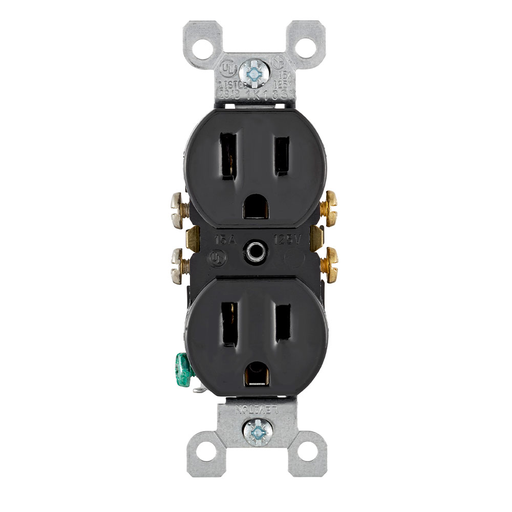

Image thumbnail 1
Image thumbnail 2
Email

Leviton 5320-ECP 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R Black Thermoplastic Grounding Straight Blade Duplex Receptacle

Manufacturer: Leviton | Catalog # 5320-ECP | Codale Part # 1395845
$1.62/ea
ea
Log in or register to view your price, purchase history, and more!
28 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, With Ears Duplex Receptacle, Straight Blade, Residential Grade, Grounding, All Screws Backed Out Contractor Pack, Quickwire Push-In & Side Wired, Steel Strap, - Black

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Thermoplastic
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Face Material
Thermoplastic
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Wallplate
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.2 H x 1.33 W x 19 D IN
Standard
CSA Certified (File LR-406),NOM Certified (057),UL Listed 1561,UL Listed 498
Tc Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Outlet
Voltage
125 Volt
Wire Count
3
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477135570
Color
Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847713557
Weight
0.1220 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
UL
Country of Origin
USA
NEMA
  • 5-15R
Features
  • Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Levitons comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
