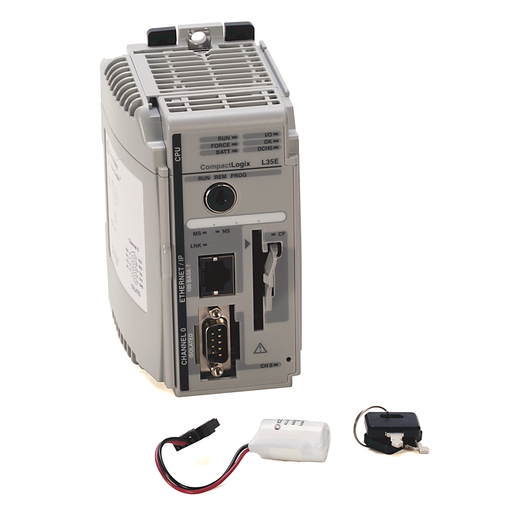

Allen-Bradley 1769-L35E Compactlogix 1.5 mB Controller

Manufacturer: Allen Bradley / Rockwell | Catalog # 1769-L35E | Codale Part # 1405973
$6,480.00/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
CompactLogix 1.5MB ENet Controller

Technical Information

Display Type
Status LEDs
Memory
1.5 MB
Mounting Type
DIN Rail,Panel Mount
Operating Temperature
0 To 60 degrees C
Standard
C-TICK,CE,CUL,GOST,KC,MARINE,UL
Type
Standard Controller

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
CompactLogix™

General Product Info

12-Digit UPC
612598302130
Product UPC
61259830213
Weight
0.9500 lb

Dimensions

Depth
3.42 Inch
Height
5.18 Inch
Width
2.66 in
Features
  • Integrate with 1769 Compact I/O™ modules
  • Supports up to 2 axes Kinematics for simple articulated robotics
  • Provide optical isolation
  • Provides up to 16 axes of Integrated Motion over EtherNet/IP
  • Include 832 points per module
  • Provides integrated safety and integrated motion in a single controller
  • Provide high accuracy ratings
  • Delivers standard, safety and motion control for On-Machine™ applications
  • Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
  • Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
  • Offers flexible user memory options
  • Include contact output modules
  • Support single network strategy to EtherNet/IP TCP/CIP connection 96
  • Includes up to a 2-GB secure digital (SD) card for fast program save and restore
  • Includes individual point diagnostic status indicators to ease troubleshooting
  • Integrates with 1769 Compact I/O™ modules
  • Offers built-in communication ports for EtherNet/IP or ControlNet networks
  • Provides flexibility with DIN rail or panel mounting options
  • Include ability to direct output device operation during an abnormal condition
  • Offer input filtering
  • Include autocalibration of inputs
  • Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
  • Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
  • Address reserve, ASCII, Boolean control, and high-speed counter modules available
  • Support SIL 3, PLe integrity (L4xS controllers only)
  • Offers a smaller form factor for maximized cabinet space
  • Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
  • Include high speed input modules
  • Available with conformal coating
  • Offer analog, thermocouple, and RTD modules
  • Require a chassis
  • Offer user memory options ranging 2 MB to 3 MB
  • Simplify your system architecture with distributed I/O over EtherNet/IP
  • Provide integrated serial port
  • Provide individually configurable channels
  • Require SERCOS interface modules for motion
  • Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
  • Supports integrated safety up to SIL 3, PLe CAT 4
  • Removes the need for lithium batteries with built-in energy storage
  • Include I/O packet rate of 10,000 pps
  • Allow control migrations with re-use of existing 1769 I/O
  • Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
  • Provides seamless bridging with data control and collection over the same network
  • Offer a variety of AC and DC voltages
  • Includes a built-in RS-232 serial port on every 1769-L3x controller
  • Include on-board scaling
  • Ideal for small, to mid-size applications that require low axis motion and I/O point counts
  • Support seamless bridging with data control and collection over the same network
  • Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
  • Prevents incorrect positioning of module with software keying
  • Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
  • Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
  • Provide dual Ethernet ports for both DLR and linear topologies
  • Offer direct connection
  • Does not require a chassis
  • Include over-range and under-range detection and indication
  • Offer selectable response to a broken input sensor
