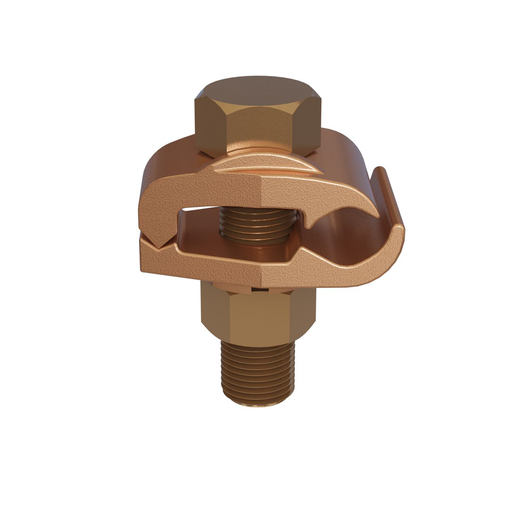

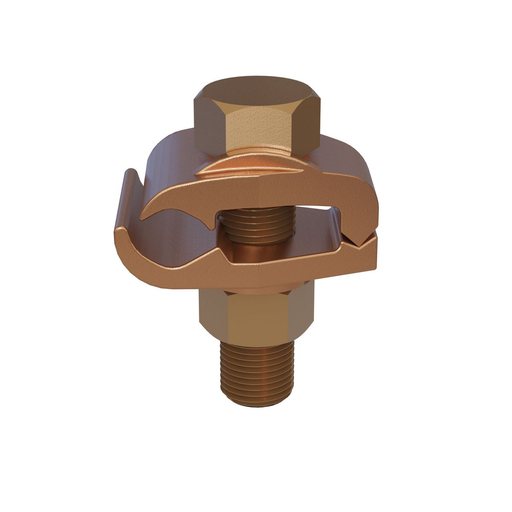

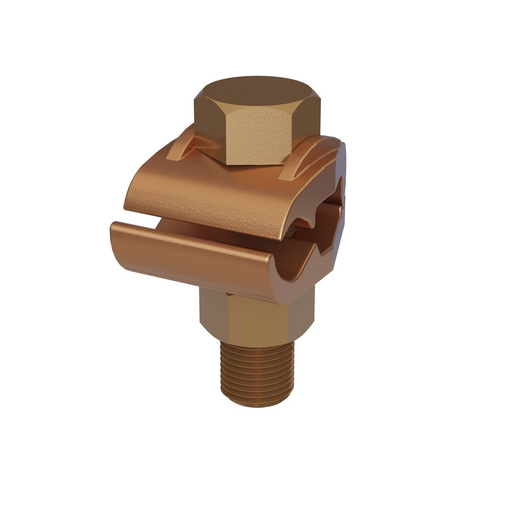

Product image for Burndy GB29 Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud, 2" Width
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Burndy GB29 Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud, 2" Width

Manufacturer: Hubbell-Burndy | Catalog # GB29 | Codale Part # 143327
$28.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Mechanical Grounding Connector, Cable to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud, 2 IN Width.

Technical Information

Applications
For Copper Cable to Bar, Direct Burial Cable
Bolt Size
1/2 in
Conductor Size
2/0 AWG-250 kcmil
Direct Burial?
Yes
Material
Copper
Mounting Type
1/2 in
Plated?
No
Plating Type
Unplated
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy Canada

General Product Info

12-Digit UPC
781810231272
Product UPC
78181023127
Weight
0.9550 lb

Dimensions

Height
2.32 Inch
Length
1-1/4 Inch
Overall Length
32 mm
Width
1.88 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • High copper alloy ground connector for joining a range of cable to 1/4\" thick bar
  • Type GB separates cable from bar
  • One-wrench installation
  • UL467 Listed
  • Suitable for Direct Burial in earth or concrete
