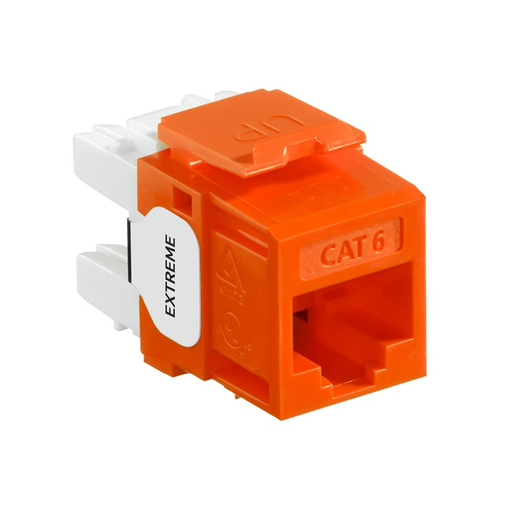

Leviton 61110-RO6 Category 6 Orange Plastic Snap-In 8-Position 8-Conductor UTP Jack Modular Connector

Manufacturer: Leviton | Catalog # 61110-RO6 | Codale Part # 1457479
$19.37/ea
ea
Log in or register to view your price, purchase history, and more!
192 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
The EXTREME Category 6 copper jack is designed to be used with all QUICKPORT compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination

Technical Information

Applications
Commercial
Body Material
High-Impact Fire-Retardant Plastic
Cable Type
Category 6
Category Type
Cat 6
Contact Material
High Quality Copper-based Alloy Plated With 50 Micro-inches Of Gold Over 100 Micro-inches Of Nickel,High Quality Copper-based Alloy Plated With 50 Micro-inches Of Gold Over 100 Micro-inches Of Nickel
Contact Type
8P8C
Flamability Class
Rated V-0 Per UL 94
Material
Copper
Mounting Type
Wallplate, Panel
Number of Positions
8
Size
0.89 H x 0.64 W x 1.21 D IN
Standard
EIA,TIA,cULus Listed
Style
EXtreme
Type
Fire-Retardant, Permanently Laser-Engraved

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Leviton
Sub Brand
Extreme, QuickPort

General Product Info

12-Digit UPC
078477144640
Color
Orange
Environmental Conditions
UL 94 Requirements, V0 Rated Flammability
Finish
Gold
Product UPC
07847714464
Weight
0.0100 lb

Dimensions

Warranty Length
1 yr

Certifications and Compliance

Country of Origin
USA
Patents
  • ECD000147723-0001
  • MX295578
  • US7547227
  • US7980890
Features
  • Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors
  • Terminates 26 AWG stranded conductors up to 5 times
  • Capable of multiple re-terminations
  • Gas-tight IDC jacks prevent corrosion
  • Easy to read wiring label simplifies punchdown
  • Patented Retention Force Technology protects tines from damage and increases system longevity
  • Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
  • 180-degree configuration allows for rear termination
  • Available in 14 ANSI/TIA-606-C compatible colors for color coding or organization
  • Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
  • Select colors available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable
