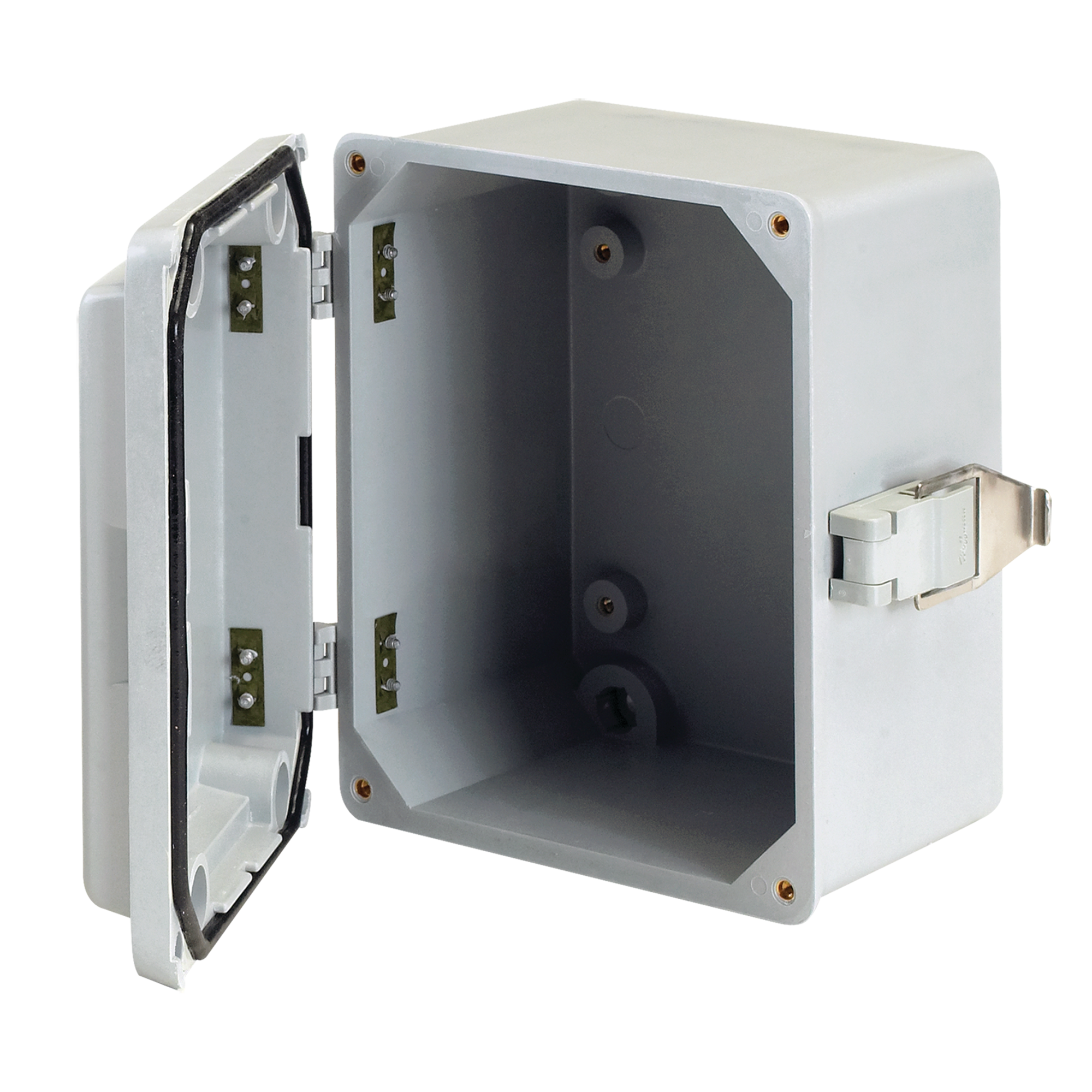

Hoffman A1066JFGQRR 10" x 6" x 6" Junction Box, Type-4X, Solid Cover w/ Quick Release Latches, Fiberglass

Manufacturer: nVent Hoffman | Catalog # A1066JFGQRR | Codale Part # 145877
$451.93/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
Capacity
329 cu in
Color Coding
RAL 7035
Cover Type
Screw or Hinged with Quick-Release Latch
IP Rating
66
Material
Fiberglass
Mounting Type
Wall
Number of Latches
2
Size
9.50x6.00x5.78 in
Standard
CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Type
Single Lock, Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510412401
Color
7035 Light Gray
Product UPC
78351041240
Weight
4.1 lb

Dimensions

Depth
152 mm
Height
254 mm
Length
10.4 Inch
Thickness
3 mm
Width
152 mm
DISK UNSPSC
39121324
Features
  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
  • Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
  • A Type 316L stainless steel padlock hasp is furnished with each enclosure
  • Sealing washers are furnished with enclosure
