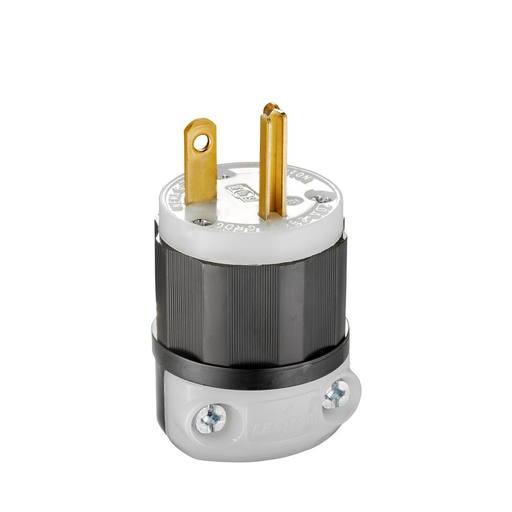

Product image for Leviton 5466-C 250 Volt 20 Amp 2-Pole 3-Wire NEMA 6-20P Black/White Nylon Grounding Polarized Straight Blade Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Leviton 5466-C 250 Volt 20 Amp 2-Pole 3-Wire NEMA 6-20P Black/White Nylon Grounding Polarized Straight Blade Plug

Manufacturer: Leviton | Catalog # 5466-C | Codale Part # 1486454
$45.35/ea
ea
Log in or register to view your price, purchase history, and more!
61 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 250 Volt, NEMA 6-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, - Black/White

Technical Information

Amperage
20 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Device Type
Straight Blade Plug
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Grounding
Material
Nylon
Mounting Type
Cable
NEMA

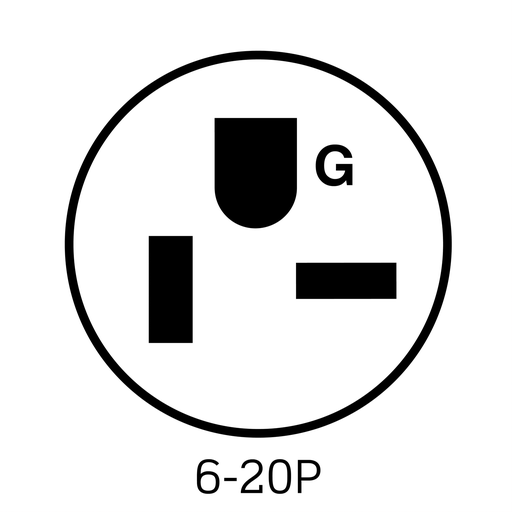

6-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
1.53 Dia x 1.98 H IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Torque
10 lb-in
Type
Industrial Grade
Voltage
250 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477796009
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) C
Product UPC
07847779600
Weight
0.1600 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Black-White
Features
  • Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a lifetime warranty:
  • One piece contacts reduce friction and overheating
  • Unique cord clamp accepts wide range of cord sizes (.245\"-.700\")
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Industry exclusive lifetime warranty
  • Ideal for motors such as unisaws, table saws, portable dust collectors, air compressors and generators
NEMA
  • 6-20P
