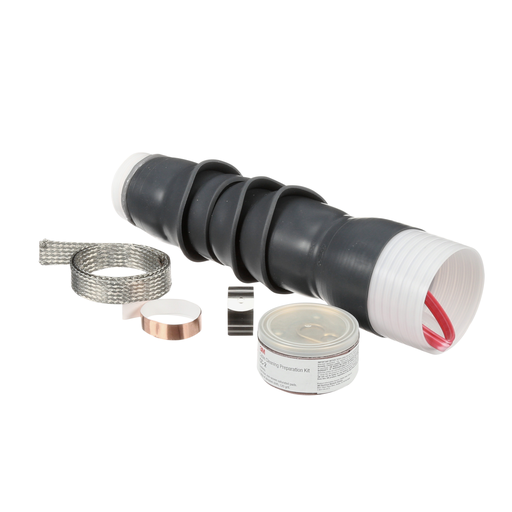

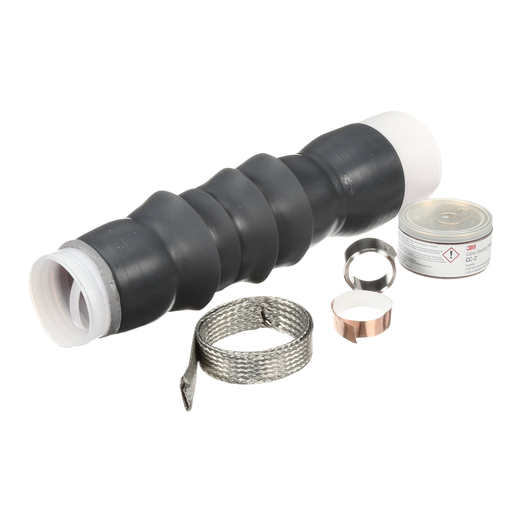

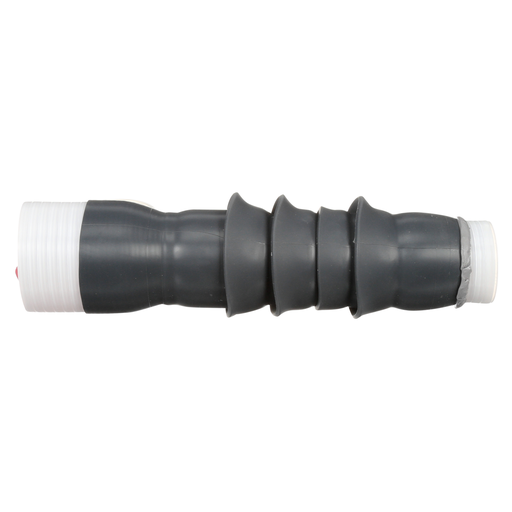

3M 7695-S-4 Cold Shrink 3 Terms/Kit 4 Skirt Termination Kit

Manufacturer: 3M | Catalog # 7000006122 | Codale Part # 148853
$2,347.60/ea
kt
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet
3M™ Cold Shrink QT-III Outdoor Terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Outdoor 4 Skirt Termination 7695-S-4 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil, 15 kV: 500-1000 kcmil and 25/28 kV: 250-800 kcmil.

Technical Information

Applications
For Outdoor Applications
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
250-1500 kcmil
Indoor Outdoor
Outdoor Skirted
Material
Rubber
Number of Conductors
1
Type
Outdoor, QT-III
Voltage
15 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007422143
Product Series
7690-S
Product UPC
05400742214
Used With
26.7 - 45.7 mm Cable
Weight
6.4600 lb

Certifications and Compliance

Country of Origin
USA
Features
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions
