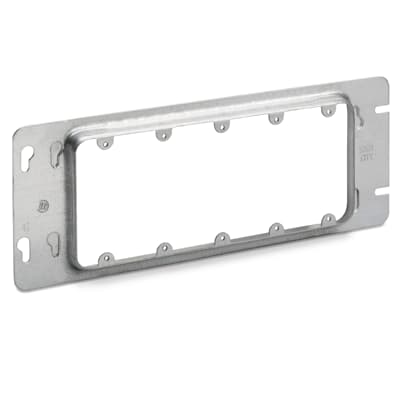

Steel City 5-GC 5-Gang Steel Raised Box

Manufacturer: ABB Thomas & Betts | Catalog # 5-GC | Codale Part # 1498889
$3,961.31/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
7 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Five Gang Box Cover, 23 Cubic Inches, 12-7/16 Inches Long x 4-11/16 Inches Wide x 13/16 Inches Raised for Plaster, Galvanized Steel, Holes between Gangs are Spaced on 13/16 Inch Centers, Tapped Holes in Ears, Spaced on 3-9/32 Inches Centers to Accommodate All Standard Receptacles and Switches, Furnished with Extra Plugged Screw Holes, if these Screw Holes are Used, the Cover will fit the Next Smaller Size Box

Technical Information

Applications
The cover will fit the next smaller size box
Material
Steel
Number of Gangs
5 Gang
Number of Outlets
5
Size
12-7/16 in
Standard
UL E2969
Type
Outlet Box Covers

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
785991131208
Color
Silver
Finish
Galvanized
Product UPC
78599113120
Weight
0.6900 lb

Dimensions

Depth
13/16 Inch
Length
12-7/16 Inch
Width
4-11/16 in
Features
  • Furnished with extra plugged screw holes. If these screw holes are used, the cover will fit the next smaller size box.
  • Tapped holes in ears are spaced 3-9/32\" to accommodate all standard receptacles and switches.
  • Holes between gangs are spaced on 1-3/16\" centers.
