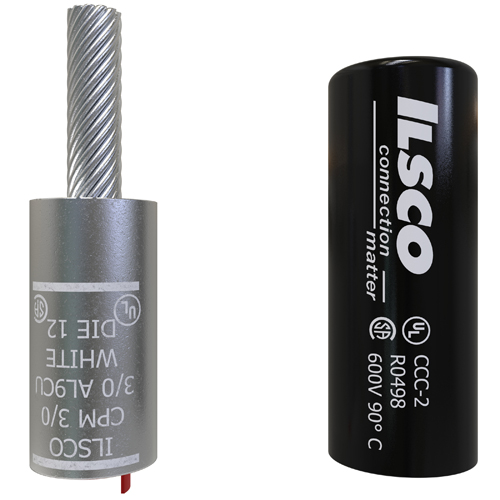

Product image for Ilsco CPM-3/0 Copper Compression Pigtail Adaptor, Conductor Size 3/0, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CPM-3/0 Copper Compression Pigtail Adaptor, Conductor Size 3/0, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-3/0 | Codale Part # 1551490
$50.23/ea
ea
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 3/0 Str, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code White, primary color Silver, die index 12,

Technical Information

Applications
Terminating Connector
Barrel Length
1.875 in
Barrel Type
Standard
Conductor Material
Aluminum,Copper
Conductor Size
3/0 AWG
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum-Copper
Material
Copper
Number of Conductors
1
Size
L:4.125;W:1.086;H:1.086 IN
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008524
Color
White
Product UPC
78366900852
Weight
0.109 lb

Dimensions

Height
1.086 Inch
Inside Diameter
0.552 in
Length
4-1/8 Inch
Outside Diameter
0.906 in
Overall Length
3-1/4 in
Width
1.086 in
