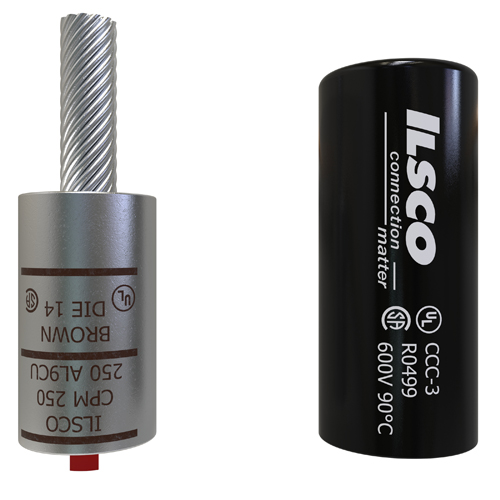

Product image for Ilsco CPM-250 Copper Compression Pigtail Adaptor, Conductor Size 250, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco CPM-250 Copper Compression Pigtail Adaptor, Conductor Size 250, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CPM-250 | Codale Part # 1551492
$57.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Copper Pigtail Adaptor, Compression connection, Dual Rated, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 250 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,

Technical Information

Applications
Terminating Connector
Barrel Length
2.062 in
Barrel Type
Standard
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
250 kcmil
Conductor Type
Stranded
Connection Type
Compression
Contact Material
Aluminum/Copper
Material
Copper
Number of Conductors
1
Pin Length
1.500 in
Size
L:4.5;W:1.335;H:1.335 IN
Standard
UL File Number: E62525,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
Straight
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669008562
Color
Silver
Product UPC
78366900856
Weight
0.198 lb

Dimensions

Height
1.335 Inch
Inside Diameter
0.595 in
Length
4-1/2 Inch
Outside Diameter
1.155 in
Width
1.335 in
