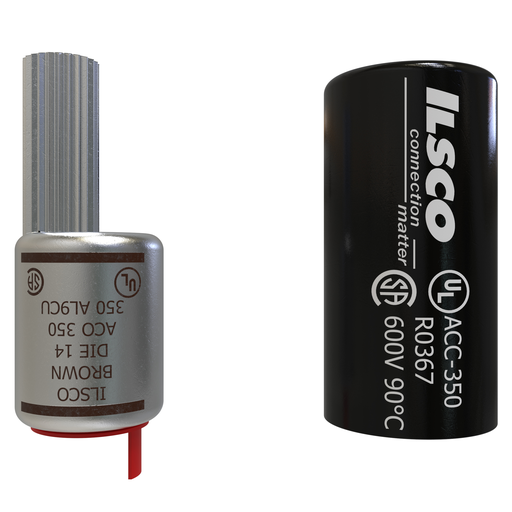

Product image for Ilsco ACO-350 Aluminum Compression Pigtail Adaptor Offset, Conductor Size 350, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco ACO-350 Aluminum Compression Pigtail Adaptor Offset, Conductor Size 350, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ACO-350 | Codale Part # 1551522
$51.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Aluminum Offset Pigtail Adaptor, Compression connection, Dual Rated, Aluminum material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper/Aluminum Primary Conductor 350 kcmil, Contains DE-OX®, 1 conductors, no sight window, Supplied with insulating cover insulation, rated for 600 V, die color code Brown, primary color Silver, die index 14,

Technical Information

Applications
Aluminum Offset Pigtail Adaptor
Barrel Length
1.41 in
Barrel Type
Standard
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Size
350 kcmil
Conductor Type
Stranded
Connection Type
Compression
Material
Aluminum
Number of Conductors
1
Pin Length
1.340 in
Size
L:3.835;W:1.29;H:1.29 IN
Standard
UL File Number: E62525,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
ACO:AL OFFSET PIN
Voltage
600 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669009583
Color
Silver
Product UPC
78366900958
Weight
0.167 lb

Dimensions

Height
1.29 Inch
Inside Diameter
0.72 in
Length
3.835 Inch
Outside Diameter
1.1 in
Width
1.29 in
