Thomas & Betts 54482 Copper Lug

Manufacturer: ABB Thomas & Betts | Catalog # 54482 | Codale Part # 1566980
$3,211.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

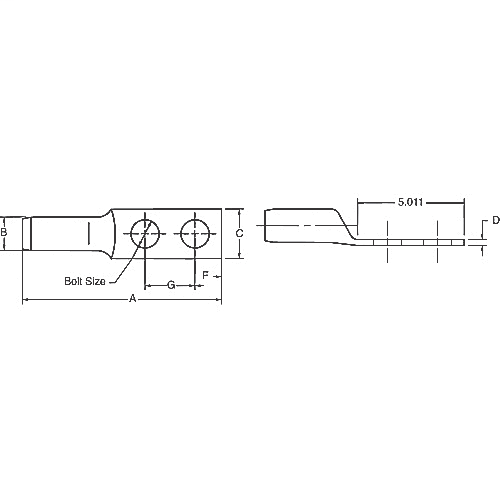

Copper Two-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size 350 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 71R, Die Color Code Red Rounding Die

Technical Information

Barrel Length
Long
Barrel Shape
Standard
Barrel Type
Long
Cable Size
350 kcmil
Conductor Size
350 kcmil
Insulated?
No
Material
Copper
Number of Holes
2 Hole
Number of Studs
2
Standard
UL E9809
Stud Size
1/2 in
Temperature Rating
105 degrees C
Tongue Angle
Straight
Tongue Type
Straight
Tongue Width
Standard
Type
Long Barrel
Voltage
15 kV
Wire Size
350 kcmil

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210544823
Color
Red
Finish
Tin Plated
Product UPC
78621054482
Shape
Round
Features
  • Recommended for up to 15KV applications, installed with standard T&B tools with special rounding dies.
  • The rounding die overlapped compressions provide a smooth round surface. This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.
  • High conductivity wrought copper, tin plated. Cable Area Clearly Identified on Lug.
Notes
  • Cable Size: Concentric and compact strandings.
  • Cat No. TBM15500 Die Adaptor required for TBM15I tool.
  • TBM14M and 13100A UL listing limited to 1/0 AWG to 500 kcmil cable sizes.
