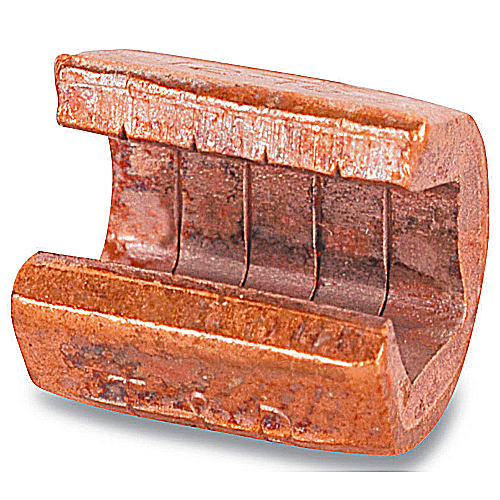

Product image for Thomas & Betts 54715 Copper C-Tap Connector - 600V - 6-8/8-12
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts 54715 Copper C-Tap Connector - 600V - 6-8/8-12

Manufacturer: ABB Thomas & Betts | Catalog # 54715 | Codale Part # 1567015
$239.95/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet

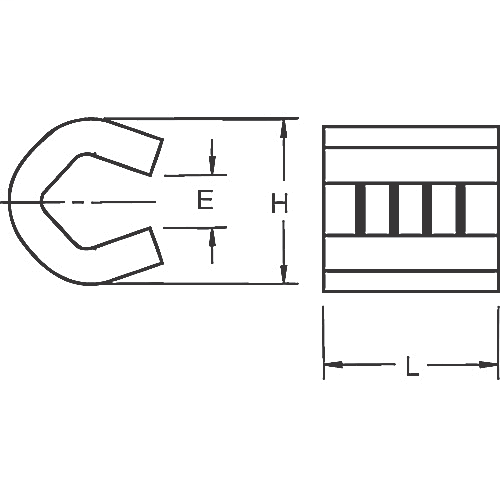

Copper C-Tap, 600V, Wire Range-Main: 6-8, Branch 8-12, Length 9/16 Inch, Height 5/8 Inch, Die Code 29, Die Color Code Gray

Technical Information

Conductor Size
8-6 AWG
Material
Copper
Tap Size
8 to 12 AWG
Type
C-Tap
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210547152
Finish
Plain
Product UPC
78621054715
Weight
0.0300 lb
Features
  • Heavy reinforcing ribs help locate compression dies and strengthen compressed joint.
  • Positive, all-around compression with low resistance and high pull-out values.
  • Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.
Notes
  • Taps can be supplied tin-plated. Add suffix TP to any catalog number.
  • Each C-Tap contains a range of conductor sizes. See Installation Instructions for wire range combinations.
  • UL approved for direct burial.
