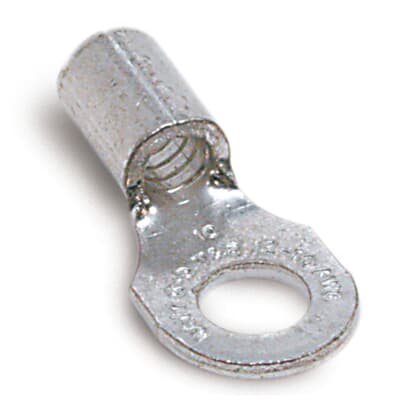

Image thumbnail 3
Email

Thomas & Betts B14-8 Non-Insulated Ring Terminal - #18-14, #8bolt

Manufacturer: ABB Thomas & Betts | Catalog # B14-8 | Codale Part # 1568561
$76.99/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Non-Insulated Ring Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #18-#14 AWG, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#8
Temperature Rating
150 degrees C
Terminal Type
B
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210803203
Color
Metallic
Finish
Electro Tin Plated
Product UPC
78621080320
Weight
0.0100 lb

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.63 in
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity.
  • They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
  • Serrated barrel increases grip on wire.
Code Compliance
  • UL E9809
