ABB F71-TB NON-INS BS RING TERM 4 1

Manufacturer: ABB Thomas & Betts | Catalog # F71-TB | Codale Part # 1568976
$262.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

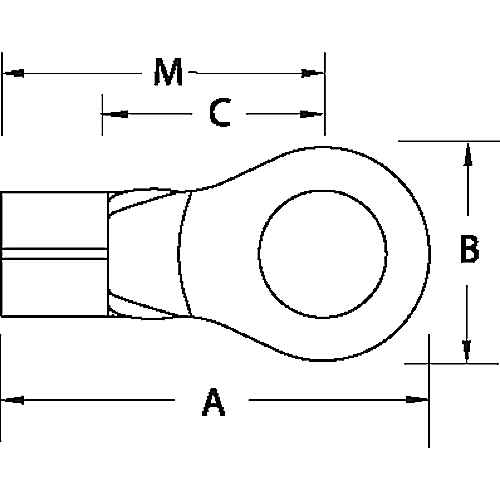

Non-Insulated Large Brazed Seam Ring Terminal, Length 1.16 Inches, Width .48 Inches, Bolt Hole 1/4 Inch, Wire Range #4 AWG, Copper, Tin Plated, 200 Pack

Technical Information

Conductor Size
4 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated - Brazed Seam
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
150 degrees C
Terminal Type
F
Type
Short Sleeve
Voltage
600 Volt
Wire Size
4 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210812182
Color
Metallic
Finish
Electro Tin Plated
Product UPC
78621081218
Weight
0.0800 lb

Dimensions

Height
3 Inch
Thickness
.07 in
Width
4-1/2 in
Certifications
  • CSA
  • UL
Notes
  • Not available on Mylar Tape.
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
