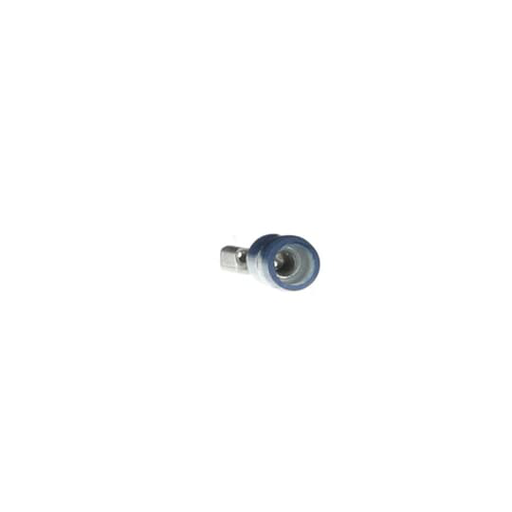

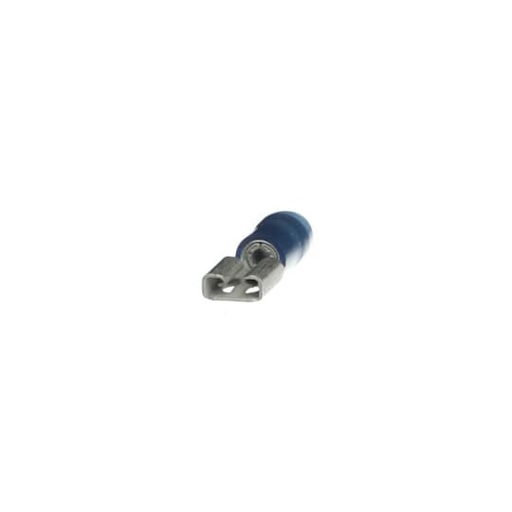

Thomas & Betts RB250 Nylon Self-Insulated Female Disconnect - 16-14, .250x.032tab

Manufacturer: ABB Thomas & Betts | Catalog # RB250 | Codale Part # 1569227
$68.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Nylon Insulated Female Disconnect, Length .91 Inches, Width .29 Inches, Maximum Insulation .162, Tab Size .250x.032, Wire Range #16-#14, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Applications
For Insulated Varnish, Round Conductors
Conductor Size
16-14 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Brass
Standard
UL E66716
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210818160
Box Quantity
10000
Color
Blue
Finish
Electro Tin Plated
Product UPC
78621081816
Weight
0.0100 lb

Dimensions

Length
0.91 Inch
Features
  • Unique construction of the female disconnect offers long-term dependability.
  • Brazed seam serrated barrel provides maximum tensile strength.
  • Application Tools: WT145C, WT2000, WT112M, ERG4001
