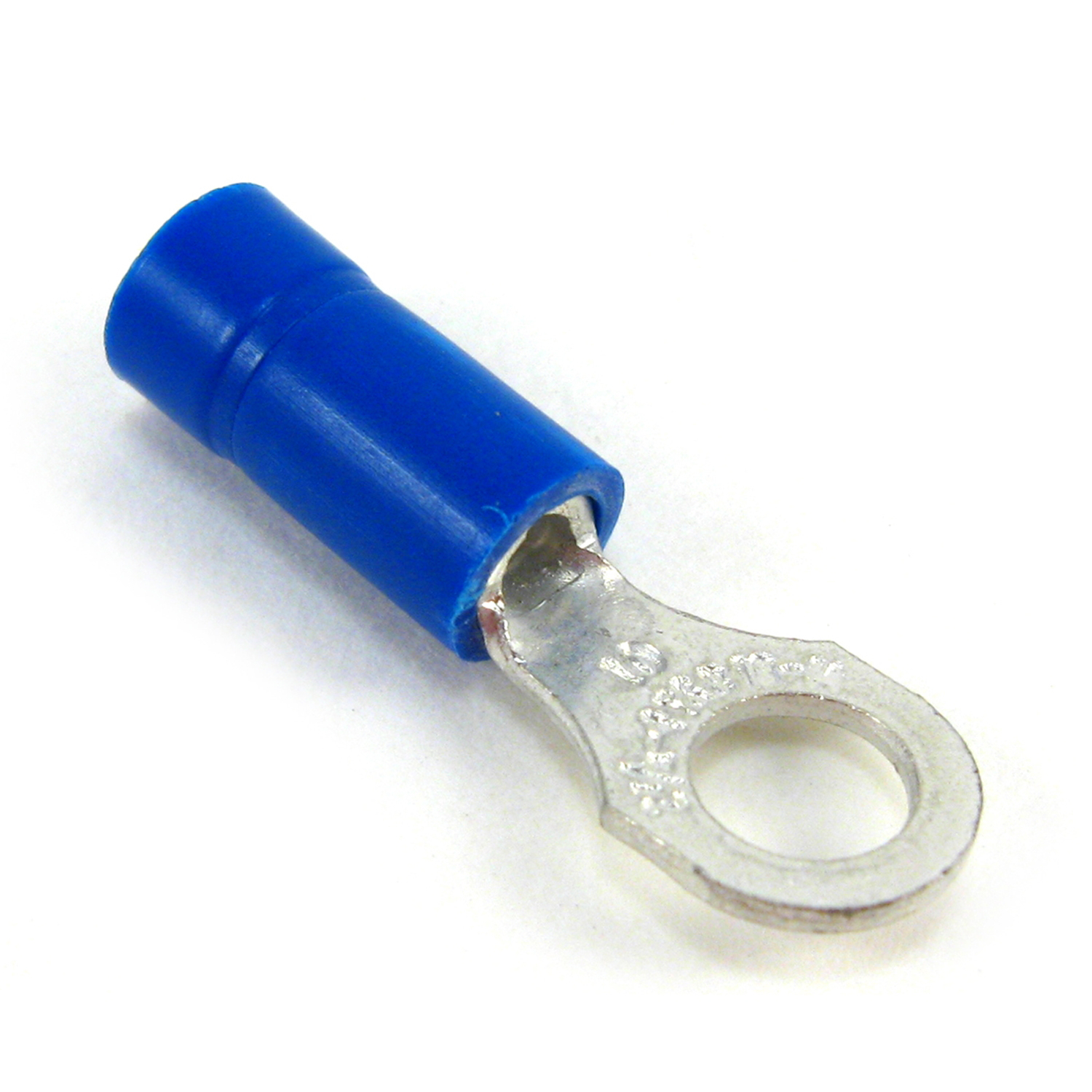

Thomas & Betts RB877 Vinyl-Insulated Ring Terminal - #18-14, #10bolt (1000/Box)

Manufacturer: ABB Thomas & Betts | Catalog # RB877 | Codale Part # 1569264
$46.29/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
4,000 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

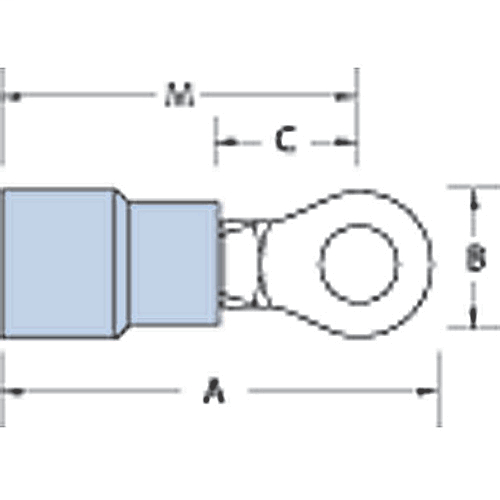

Vinyl Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210818948
Color
Blue
Finish
Electro Tin Plated
Product UPC
78621081894
Weight
0.0100 lb
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
